Imx238 CMOS 1200tvl Smoke Detector Dusguised Hidden Miniature Pinhole Camera

Imx238 CMOS 1200tvl Smoke Detector Dusguised Hidden Miniature Pinhole Camera

1+
19 USD
10+
18 USD
100+
17 USD

add to cart
Model NO. KV-C120SP
Style Mini Camera
Sensor CMOS
Horizontal Resolution 1200tvl
Certification CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000, SGS
Effective Distance 10-30m
Remote Control Without Remote Control
Lens with 3.7mm Pinhole Lens
Control with OSD Menu, OSD Control Cable Optional
Trademark KODAVISION
Origin China
Technology WDR
Type CCTV Camera
HDMI Format 720P
Kind Fixed Lens
Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Sensor Size 1/3 inch
CMOS 1/3 Inch Sony CMOS Imx238
Power DC 8-24V, 80mA, Normal 12V
Shape Smoke Sensor Disguised Hidden Case
Specification CE. FCC. RoSH compliant
HS Code 8525801390

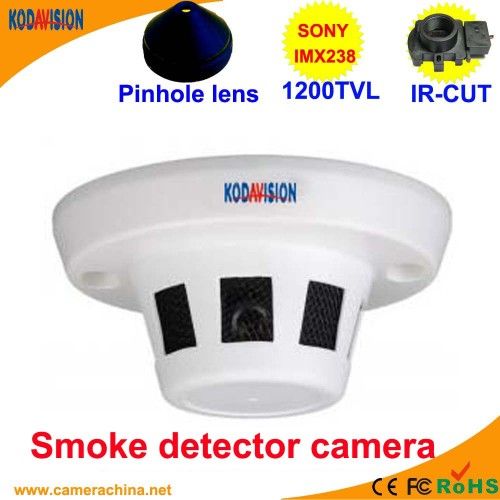

Mini Smoke Sensor Disguised Hidden CCTV camera
Mini camera solution offers the flexibility to install your cameras anywhere without being detected. High picture quality at the low illumination is strongly requested for industrial application cameras. Responding to this demand, We adopt Sony IMX238 CMOS image sensors which improves sensitivity in the near infrared light region, not only in the visible light range. IMX238 CMOS image sensors used the technology from the EXview HAD CCD(SONY), and the sensitivity in the near infrared light region improved up to 2 times compared to the current products. This enables to identify objects clearly enough even in the night-time shooting.
Core feature:
Mini size case
3.7mm pinhole lens
Smoke sensor disguised hidden case
With OSD menu,OSD control cable optional
SPECIFICATION (Bracket included)
Model KV-3170S KV-3180S KV-C70S KV-C100S KV-C120S
Image Sensor 1/3'Sony CCD(EFFIO-E)FIO-E) 1/3'Sony CCD(EFFIO-A)FIO-A) 1/4'Pixel plus CMOS PC7030PC7030 1/3'Pixel plus CMOS PC1099NC1099N 1/3'Sony CMOS IMX238IMX238
Signal System NTSC/PAL
Pixels 960H*582V 976H*582V 756H*504V 1080H*596V 1305H*1049V
Horizontal Resolution 700TVL 800TVL 700TVL 1000TVL 1200TVL
Digital zoom N 255X(see through fog) N N N
Minimum Illumination IR ON 0Lux
S/N Ratio 48dB to 60dB
Auto Electronic Shutter PAL: 1/50s~1/100,000sec NTSC: 1/60s~1/100,000sec
Gamma Correction 0.45
AGC Auto
Auto White Balance Auto
Backlight Compensation Auto
Synchronous System Internal Synchronous
Lens 3.7mm pinhole lens
Video Output 1.0vp-p,75Ω, BNC Connector
Power Supply DC12V
Operating Temperature -10ºC~50ºCC~50ºCrdm;CC~50ºC
