Laser IR Vehicle Car Bus PTZ Auto Tracking Camera

Laser IR Vehicle Car Bus PTZ Auto Tracking Camera

1+
695 USD
10+
690 USD
100+
650 USD

add to cart
Model NO. KM-SP70L
Sensor CCD
Technology Pan / Tilt / Zoom
Effective Distance ≧30m
Horizontal Resolution 700tvl
Sensor Size 1/3 inch
CCD and DSP Icx673ak and Sony Effio-E Cxd4140
Housing Outdoor Dome Weatherproof IP66 Standard
Preset Position 256 Preset Positions
Trademark KODAVISION
Origin China
Type Video Camera
Speed High-speed Dome
Feature Vandal-proof, Waterproof / Weatherproof, High Definition, Auto BLC
Focal Length Zoom Lens
Focus Range 2.8-84mm
Sensor Model L
IR Light Laser IR System with 300m IR Range
Zoom 30X Auto-Focus Optical Zoom and 10X Digital Zoom
Crouse Scan 16 Scans, 20 Preset Position for Each
Specification CE. FCC. RoSH compliant
HS Code 8525801390

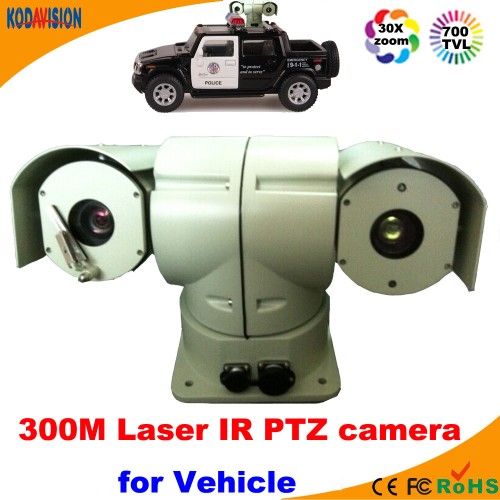

Laser IR High Speed Dome PTZ camera for Vehicle
Feature:
1.Vandal proof IR High Speed Dome, Laser IR:300M,IP66 housing
2.Range: PAN 360°/TILT 90°,Speed:0.05°-300°/s(PAN)/0.05°- 180°/s(TILT)05°- 180°/s(TILT)/s(TILT)05°- 180°/s(TILT)
3.Buil-in OSD, Auto Flip(Pan 180°,Tilt:90°),256 Preset,16 Cruise,6 Pattern scantern scantern scan
4.RS-485,Multi-Protocol:PELCO-D,PELCO-P,Dahua,Hikvision.etc
5.Baud rate:1200/2400/4800/9600bps
6.Lightning Protection(3000V),Surge Protection, With windscreen wiper
Model KM-SP65L KM-SP70L
Image Sensor 1/3'Sony EFFIO-E(ICX639)CX639) 1/3'Sony EFFIO-E CCD(ICX673)CX673)
Zoom 30X Auto -Focus Optical Zoom, 10X digital zoom
Day/Night Mode Auto ( ICR )
Horizontal Resolution 650TVL 700TVL
Signal System PAL/NTSC
Pan Rotation 360° continuous rotation, no blind monitoring, manual speed: 0.05~180°/s80°/sg;/s80°/s
Tilt Flip 0~-90° auto flip, manual speed: 0.05~180°/s80°/sg;/s80°/s
Cruise scan 16 scans, each can add 20 preset position
Pattern Scan 6 scans, each can add 100 action
Home Operation Preset/Pattern scan/Cruise Scan/Area Scan/Panorama Scan
Continuous Scan Scanning speed can be settable (1~5 level)
Power-on Operation 9 scheme optional:(Continuous Scan/ Intermittent Scan/ Area Scan/ 1 Preset/ 8 Preset/ Preset Cruise 1/ Preset Cruise 2/ Preset Cruise 3/ Preset Cruise 4)
Communication Protocol Pelco-P, Pelco-D, self-adaptive
Communication Mode RS485
Power DC 24V/3A
Power Consumption Night: 27W max; Day: 6W max
Operating Temp. -30ºC~ 60ºC~ 60ºCrdm;C~ 60ºC
Relative humidity 90% Max
Protection Level IP66 (outdoor dome),TVS 3,000V lightning protection, surge protection and voltage transient protection
