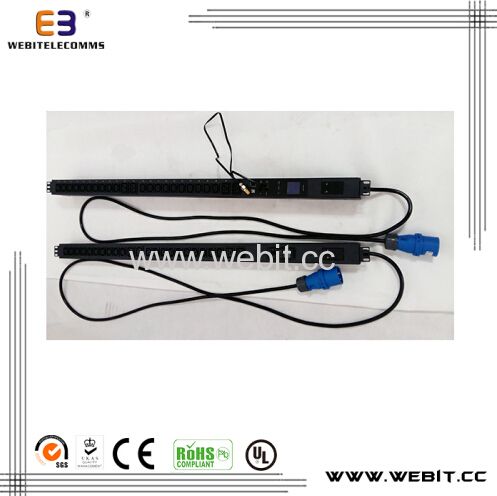

Monitored Smart PDU with C13 & C19 Outlet

Monitored Smart PDU with C13 & C19 Outlet

bargain

add to cart
Model NO. A
Certification TUV, RoHS, ISO9001, UL
Height 1u
Rated Current 10A
Input 32A IEC 309
Monitored Display LCD Screen
Number of Sockets 24 Ways
Specification CE, RoHS, ISO, SGS
HS Code 8517709000
Color Black
Installation 19 Inch
Rated Voltage 250V
Materials Uninflammable PC Module, SPCC Shell
Output C19×4, C13 ×20 C13 ×20es;20 C13 ×20
Ethernet Port RJ45 10/100m
Trademark Webitelecomms
Origin Ningbo China.

Intelligent Monitored smart PDU with remote control
Smart Power Distribution unit is the world-advanced new generation network power distribution and monitoring device.Through LAN or WAN, the manager can monitor,control and manage the power of many equipment in the cabinet of the data room located all over the world.
WebiTelecomms SPDU contains two series:WB-SPDU2000(standard size),WB-SPDU5000(non standard size): and each series include four levels:A,B,C and D which can meet the requirement of different environment and customers.
WebiTelecomms SPDU are widely applied to 19' standard and non-standard server rack or network cabinet.binet.
through internet Webitelecomms SPDU can remotely monitor,control and manage :

-Total load current(A)
-Working voltage(V)
-Total Power(KW)
-electric energy(KWH)
-Frequency
-load current of each outlet(A)
-On/off state of each outlet
-Temperature/Humidity state
-Smog state
-Water-logging
-Door state
-Power on/off of the group. Power on/off of each outlet
-Sequential power on/off of the each outlet
-Timing power on/off of each outlet
-Environment control
Remote monitor
Remote control
-The limiting range of tatal load current
-The limiting range of work voltage
-The limiting range of each outlet current
-The limiting range of temperature
-The limiting range of humidity
-the total load current exceeds the limiting value
-Temperature exceeds the limiting value
-Humidity exceeds the limiting value
-Smog
-Water-logging
-Door opening
-The buzzer on SPDU control panel alarms
-Automatically send email to system administrator
-Automatically send message through SMS to system administrator
User management
-Set user's password and device IP address
Patameter
Alarm
Alarm method

Communication Function
User can by means of the remote device via the WEB,SNMP, Telnet to view,function configuration parameters and power control
Quickly and easily upgrade firmware via network download for future preduct enhancement liminates the need to replace products already installed in the field when new features are released

Rated current
10A

Rated load
4000W

Rated voltage
250V

Household voltage
230V

Number of sockets
24 ways

Size
19' 1.5U/1U.5U/1U

Shell material
Uninflammable PC module, SPCC shell

Type of cable
3G*4.0mm2*2m

Type of plug
AS/NZS3112 plug with UL

Degree of protection against electric shock
IP20

Provision for earthing
With earting contact

Method of connecting the cable
Non-rewirable

Type of connections
Welded-solder

Degree of protection against electric shock
Normal protection

Existence of shutters
With shutters

Method of application-mounting
Portable type
