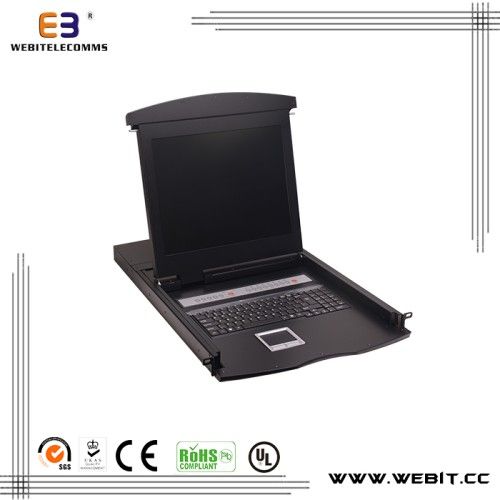

17" Cat5 LCD Kvm Switch with 16 Ports

17" Cat5 LCD Kvm Switch with 16 Ports

bargain

add to cart
Model NO. WB-AI7116TLG
Type Wired
Information content Data
Condition New
Trademark Webitelecomms
Origin Zhejiang China
Usage Telephone, Computer, Workstation, Server, Mobile phone, Laptop
Support Network Ethernet
Certification CE, ISO, RoHS
Size 446 X 636 X 42 Mm
Specification CE RoHS
HS Code 8543709990
Features:
Control platform with LCD, keyboard, mouse and multiple ports CAT5 KVM switch
1U height, suitable for 19-inch standard cabinet installation and metal structure
17-inch LCD screen with high brightness, high clear and high resolution
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees
Ultra thin keyboard with keypad
Mouse touch board with two function button
Front panel with lock to prevent damage by accident
Built-in power
Automatic power on/off
When pulling control platform out from cabinet the power turns off automatically
When pushing it into the cabinet the power turns on automatically
Easy to use OSD menu
One control platform can controls 8 computers by direct connection
Compatible with USB standard interface
Supports VGA, SVGA and XGA video input
Accord with DDC, DDC2, DDC2B standards and VESA standard
Supports maximum resolution of 1920 x 1440p
Supports multiple operating systems: Win95/98/98SE/ME/200/XP/7/Vista/WinNT/Unix/Linux
Specifications:
Computer connections: 8
CPU port selection front panel switches/OSD menu
Console connectors keyboard disassembled standard 99-key keyboard
Mouse disassembled standard PS/2 touch pad
Video 17-inch SXGA color TFT LED
Network RJ45 port
Selected 8 green LEDs
Video resolution 1280 x 1024p
Power: 5V DC, 400mA
Power adaptor: 12V DC (external)
Operating temperature: -10 to 50° Ceg; Ceg; C
Storage temperature: -20 to 60° Ceg; Ceg; C
Housing: Metal
Weight: 18.9kg
Dimensions: (L) 446 x (W) 636 x (H) 42mm
Package
WB-7108ULG--8 ports

Type
WB-AI7116TLG
Computer connections 16
CPU port selection Front panel switches/OSD menu
Console connectors Keyboard Disassembled standard 99-key keyboard
Mouse Disassembled standard PS/2 touch pad
Video 17 inch SXGA color TFT-LED
Dongle connectors Keyboard 1 x PS/2 male (purple) 1 x USB male
Mouse 1 x PS/2 male (green)
Video 16 x HDB-15 male (blue)
IP Port Network RJ45 port
LEDs On Line 16 red LEDs
Selected 16 green LEDs
Video resolution(optimal) 1280 x 1024
Power DC12V, 4A
Power adaptor External: DC 12V
Operating temperature -10C~50C
Storage temperature -20C~60C
Housing Metal
Weight 18.6 Kg
Dimensions(L x W x H ) 446 x 636 x 42 mm
