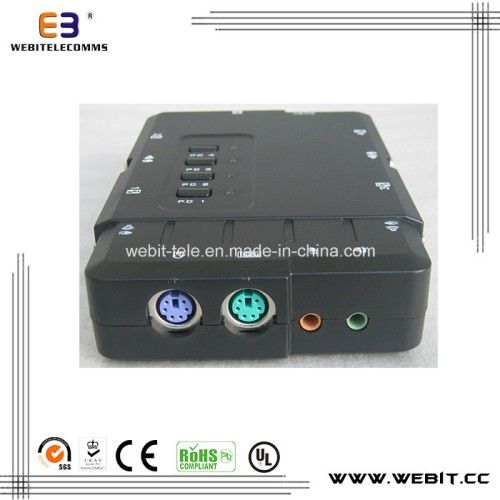

4 Port Kvm Switch with Audio Plastic Housing

4 Port Kvm Switch with Audio Plastic Housing

bargain

add to cart
Model NO. WB-CS41CA
Type Wired
Information content Data
Condition New
Housing Plastic
Specification CE, RoHS, ISO, SGS
HS Code 8517709000
Usage Telephone, Computer, Mobile phone, Laptop
Support Network Ethernet
Certification CE
Connector 4 Ports
Trademark Webitelecomms
Origin Ningbo, China
4 PORT USB KVM SWITCH(AUTO WITH AUDIO PLASTIC CASE)
It enable to control multiplecomputers through a group of monitor, keyboard and mouse. This saves not onlyequipment like monitor, keyboard and mouse, but also precious space, and noneed to walk around while working. Especially in those narrow computer room, itis convenient for master control, reduce monitors and radiation, good forhealth. Therefore, KVM switch plays more and more important role in the age ofmodernized information management. It is widely used in bank, telecom, securities, industrial control for multiple server and user operation, also itis applicable in final testing for computer manufacturers.
Features
1. Controls 2/4 computers from a single console (USB Keyboard/Mouse)
2. Supports Windows, Linux, Mac OS9/OSX, Sun Micrsystems.
3. Emulates a keyboard on each PC to allow your computers to boot normally withouta keyboard error.
4. Supports hot-swap. All devices connected to the KVM can be added orremoved at any tine, without shutting the unit down.
5. Supports 2 types of switching:
(1) Hardwre Push Button, (2) Hot-Keys on PS/2 (3). Mouse switch(need install software)
6. Supports Auto-Scan function to alternate video between computers inpreset intervals.
7. Supports LED display for PC status monitoring.
8. SupportsVGA resolutions up to 2048× 1536 @ 85Hz.@ 85Hz.@ 85Hz.
9. Supports Beeper during switching enabled.
10. Self powered through PS/2and/or USB connection.
11. Fully compliant with the USB 1.1/2.0 specification.
Specification
Number Of Computers Controlled 2/4
Selection Method Push Button , Hot-Key on the keyboard, mouse switch
LEDs yes
PC Connectors Video 2/4 ×HDB - 15 female female female
PC Connectors (USB signal combined)
Speaker 2/4 audio female jacket (audio version)
Microphone 2/4 audio female jacket (audio version)

Console Ports
Keyboard 1×USB A type femalee female female
Mouse 1×USB A type femalee female female
Video 1 ×HDB - 15 female female female
Speaker 1×audio female jacket (audio version)ersion)ersion)
Microphone 1×audio female jacket (audio version)ersion)ersion)
Auto-Scan Interval From 5 to 99 Seconds
DDC, DDC2 monitor Yes (Max. Resolution:2048×1536) @ 85Hz @ 85Hz @ 85Hz
Hot Swappable Yes
Operating systems supported Windows 98SE/ME/2000/XP/2003 Server, Linux
Mac OS9/OSX and Sun Micro System
Device driver Mouse switch only need it
Power No need
Cable Length 1. 2 0 Meter
Dimensions (L ×W×H)es;W×H)mes;H)es;W×H) 2- Port : 9 × 4 .5× 2.5 cmtimes; 2.5 cmtimes; 2.5 cm
4- Port : 11 ×7× 2.5 cmtimes; 2.5 cmtimes; 2.5 cm
Unit Weight 2- Port : 400 g
4- Port : 750 g
Housing material Plastic case
Operating Temperature 32 ~122 ° F( 0 ~50 °C ) °C );C ) °C )
Humidity 0% ~ 80%RH
