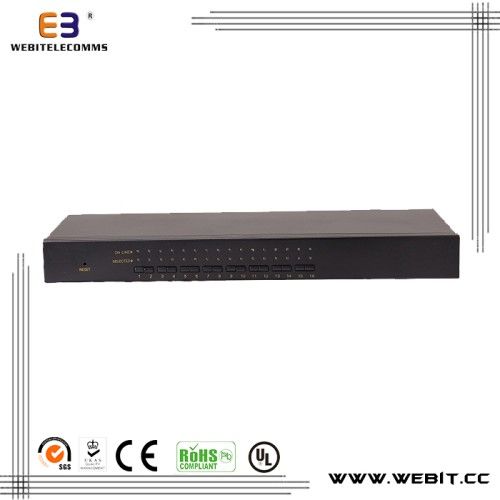

Supports USB/PS/2 with OSD menu, which controls 16 PC/16 servers
One full set of monitor, keyboard, mouse-rack mountable, PC connection ports supports PS/2 and USB
Console port: Supports USB and PS/2
Features:
=One console controls 16 computers
=Be compatible with USB/PS/2 keyboard, mouse in console and PS/2, USB keyboard and mouse in computer
=Computer selection via front panel switches and OSD
=LEDs display for easy status monitoring
=Auto scan mode for monitoring all computers
=Superior video quality
=Easy to install, no software required
=Hot pluggable, add or remove computers for maintenance without powering down switch
=Supports Microsoft Windows and Solaris
=IP function: To realize remote controlled by IP card
Specification:
Type: WB-AI9116D
Computer connections: 16
CPU port selection: Front panel switches/OSD menu
Console connectors:
Keyboard: 1 x PS/2 female (purple) and 1 x USB Female
Mouse: 1 x PS/2 female (green) and 1 x USB Female
Video: 1 x HDB-15 female (blue)
CPU connectors:
Keyboard: 1 x PS/2 female (purple) and 1 x USB female
Mouse: 1 x PS/2 female (green) and 1 x USB female
Video: 16 x HDB-15 male (blue)
LEDs online: 16
Selected 16
Video resolution: 1600 x 900p
Power: 5V DC, 400mW
Operating temperature: -10 to 50° Ceg; Ceg; C
Storage temperature: -20 to 60° Ceg; Ceg; C
Housing: Metal
Weight: 0.8kg
Dimension (L x W x H): 432 x 155 x 44mm
