CCTV Camera Module

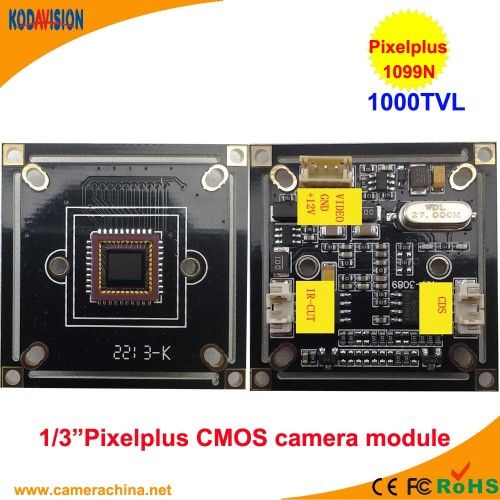

High picture quality at the low illumination is strongly requested for industrial application cameras. Responding to this demand, We adopt Pixel plus PC1099N CMOS image sensors. PC1099N has 1280 x 1024 effective pixel array and column/row driver circuits to read out the pixel data progressively. CDS circuit reduces noise signals generated from various sources mainly resulting from process variations. Pixel output is compared with the reset level of its own and only the difference signal is sampled, thus reducing fixed error signal level. Each of R, G, B pixel output can be multiplied by different gain factors to balance the color of images in various light conditions. The analog signals are converted to digital forms one line at a time and 1 line data are streamed out column by column. The Bayer RGB data are passed through a sequence of image signal processing blocks to finally produce YCbCr 4:2:2 output data.Image signal processing includes such operations as gamma correction, defect correction, low pass filter,color interpolation, edge enhancement, color correction, contrast stretch, color saturation, white balance,exposure control and back light compensation. Internal functions and output signal timing can be programmed simply by modifying the register files through 2-wire serial interface.
Core feature:
Size:32*32mm,38*38mm optional
With OSD menu, OSD control cable optional
SPECIFICATION
Model | CCM-3170 | CCM-3180 | CCM-C100 | CCM-C120 |
Image Sensor | 1/3'Sony CCD(EFFIO-E)FIO-E) | 1/3'Sony CCD(EFFIO-A)FIO-A) | 1/3'Pixel plusl plus | 1/3'Sony IMX238IMX238 |
Signal System | NTSC/PAL |
Pixels | 960H*582V | 976*582V | 1080H*596V | 1305H*1049V |
Horizontal Resolution | 700TVL | 800TVL | 1000TVL | 1200TVL |
Digital zoom | N | 255X(see through fog function) | N | N |
Minimum Illumination | IR ON 0Lux |
S/N Ratio | 48dB to 60dB |
Auto Electronic Shutter | PAL: 1/50s~1/100, 000sec NTSC: 1/60s~1/100, 000sec |
Gamma Correction | 0.45 |
AGC | Auto |
Auto White Balance | Auto |
Backlight Compensation | Auto |
Synchronous System | Internal Synchronous |
Lens Mount |
|
Video Output | 1.0vp-p, 75Ω, BNC Connector |
Protection Rate | |
Power Supply | DC12V |
Operating Temperature | -10ºC~50ºCC~50ºCrdm;CC~50ºC |
