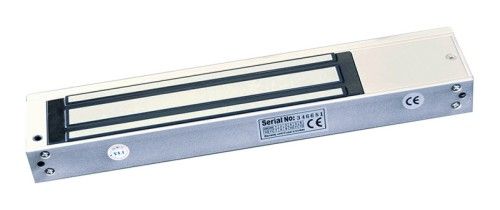

280kg/600Lbs Single Door Electric Magnetic Lock with LED
Introduction:
EL-280(LED) single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt dry contacts lock status signal output ( NO, NC, COM).
Specifications:
Lock Size: 250Lx48.5Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force: 280kg(600Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/500mA 24V/250mA
Optional Bracket: EL-280UL EL-280L EL-280ZL
Signal Output: Dry Contact, Max Rating of Contact Current 3A
LED red indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20° C0° Cg; C0° C
Operating Temp: 10~+55° C(14-131F)131F)131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2kg
Standard Packing: 12PCS
Features:
Collinear Load Test 280kg, 600pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
LED Indicates the door Status
Lock Status sensor (NO/NC/COM)
Anti-Residual Magnetism Designed
High Strength Material, Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force, Dual Insulative Housing
