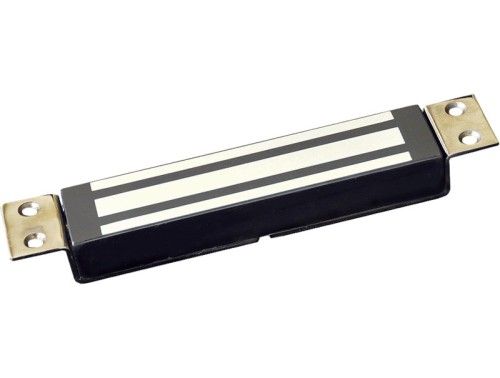

Newly Designed Electromagnetic Lock with Mortise Mount 280kgs/600lbs, EL-280m
bargain
add to cart| Model NO. | EL-280M |
| Type | Electronic |
| Part | Lock |
| Trademark | Techcrepower |
| Origin | China |
| Material | Stainless Steel |
| Shape | Rectangle |
| Usage | Household Door Locks, Channel Lock |
| Specification | CE |
EL-280M single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and easy to install . Accessories for inswing door,frameless glass door,narrow doorframe door and so on are available.
Specifications:
Product Parameter | Parameter Description |
| Size | 231.6Lx41.6Wx24.5H(mm) |
| Armature Plate Dimension | 180Lx38Wx11H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA or 24V/250mA |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20ºC20ºCrdm;C20ºC |
| Operating Temp | -10~+55ºC(14-131F)-131F)-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.1kg |
Advantage:
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office,UL Certificate by Underwriter Laboratories Inc.
