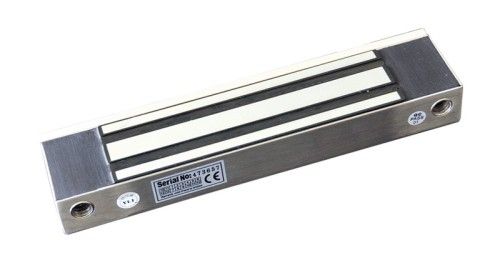

Single Door Waterproof Magnetic Lock (800Lbs) (EL-350W) with LED

bargain

Model NO.	EL-350W
Holding Force	350kg(800lbs)
Current	12V/500mA or 24V/250mA
Finishes for Shell	Anodized Aluminum
Specification	CE
Usage	Commercial, Household, Industrial
Input Voltage	12 or 24VDC
Suitable	Wooden Door , Glass Door ,Metal Door , Fireproof D
Trademark	Techcrepower
Origin	China

Specifications:
350kg(800Lbs) waterproof electromagnetic security locks
1. Holding Force: 350kg(800Lbs)
2. Voltage: 12 or 24VDC
3. Waterproof: Yes
4. Reasonable Price and high quality
Product Description
350kg(800Lbs) waterproof electromagnetic security locks
EL-350W single door electric lock with waterproof function, the case is stainless steel and it is 100% waterproof treatment.All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.
Specifications:

Product Parameter	Parameter Description
Size	227.6Lx52.6Wx28.5H(mm)
Armature plate	190Lx45Wx11H(mm)
Holding Force	350kg(800Lbs)
Input Voltage	12 or 24VDC
Current	12V/500mA or 24V/250mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp	≤+20°C20°Ceg;C20°C
Operating Temp	-10~+55°C(14-131F)131F)131F)
Humidity	0~90%(non-condensing)
Finishes for Shell	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	2.7kg

Features:
Collinear Load Test 350Kg,800pounds.
Dual Voltage 12 or 24 VDC (optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
100 percent waterproof,All the Parts Pressurize in resin.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office,UL Certificate by Underwriter Laboratories Inc.
