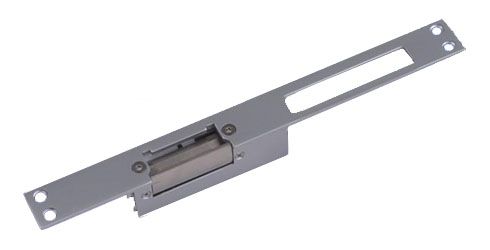

Long-Type Electric Strike (EL-132NO/NC)

Long-Type Electric Strike (EL-132NO/NC)

bargain

add to cart
Model NO. EL-132NO/NC
Structure Stainless Steel
Voltage DC12V(Need Order DC24V)
Feature Fail Secure(EL-132no) ;Fail Safe(EL-132nc)
Specification CE
Usage Commercial, Household, Industrial
Holding Stength 500kg
Current 200mA(EL-132no); 200mA(EL-132nc)
Trademark Techcrepower
Origin China

Specifications:
1. Long-type
2. DC12V(Need Order DC24V)
3. Suitable For Wooden Door,Metal Door,PVC Door
NO/NC Long-type Electric Strike for Wooden Door Metal Door
EL-132NO/NC is designed for wooden door, metal door, PVC door and so on.Electric strike has two work modes: one is the mode of lock with power outage, it means that when in the situation of power outage, the spring bolt can not be open and when the power.
Product Description

Product Parameter		 Parameter Description
Lock Size 250Lx25Wx31H(mm)
Structure Stainless Steel
Holding Stength 500kg
Voltage DC12V(Need Order DC24V)
Current 200mA(EL-132NO); 200mA(EL-132NC)
Feature Fail Secure(EL-132NO) ;Fail Safe(EL-132NC)
Suitable For Wooden Door,Metal Door,PVC Door
Surface Temp Within +20ºCordm;Cordm;C
Suitable Temperature -10~+55ºC(14-131F)-131F)-131F)
Operating Humidity 0~90%(non-condensing)
Face plate Housing Painted Steel
Bolt Housing Stainless steel,Draw the Polishing of silk
Function Built-out MOV
Weight 0.4kg

Features:
Holding 500kg .
Aluminum, Stainless Steel Bolt.
Testing to 1000000 cycles.
High-Temperature Painted,Duable and Beatiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
