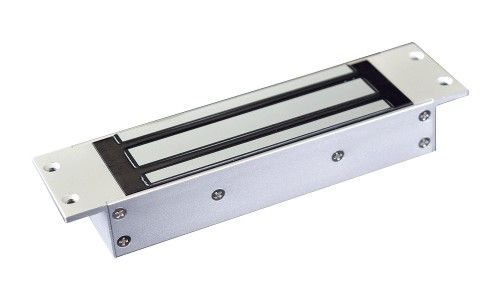

Individual Designed Magnetic Lock with Mortise Mount for Wooden Door 500kgs/1200lbs, EL-500m
bargain
add to cart| Model NO. | EL-500M |
| Holding Force | 500kg(1200lbs) |
| Current Draw | 12V/420mA or 24V/210mA |
| Finishes for Shell | Anodized Aluminum |
| Specification | CE |
| Usage | Commercial, Household, Industrial |
| Voltage | 12 or 24VDC |
| Suitable for | Wooden Door , Glass Door ,Metal Door , Fireproof D |
| Trademark | Techcrepower |
| Origin | China |
Introduction:
YM-500M-S single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and easy to install . Accessories for inswing door,frameless glass door,narrow doorframe door and so on are available.
Specifications:
Product Parameter | Parameter Description |
| Size | 254Lx65.8Wx38.8H(mm) |
Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/420mA or 24V/210mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| Surface Temp | ≤+20°C20°Ceg;C20°C |
| Operating Temp | -10~+55°C(14-131F)131F)131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 4.5kg |
Advantage:
Collinear Load Test 500kg,1200pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Our Advantage
1. Original High Quality Products:
All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,
we don't sell products with only low prices.
2. Professional Technical Team:
We can offer comprehensive solution for your projects.
We can offer detailed pre-sales requirements analysis and guide.
We can offer professional remotely technical support for problems.
3. Flexible Customization: We can customize software, firmware for customers requirements.
4. OEM,ODM service: We can design and produce machines with your own logo.
5. Good Service: We treat clients as good friend.
6. Special offers: We have special offers for long-term cooperation clients.
