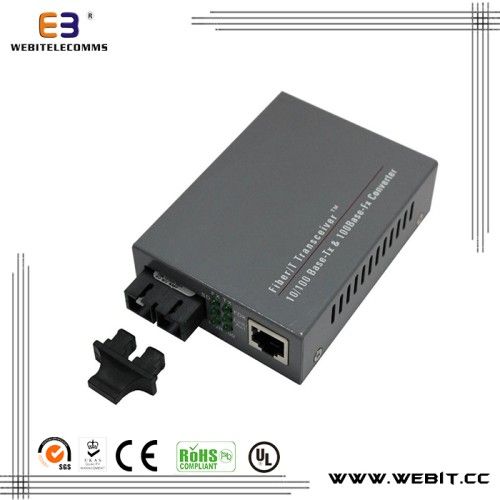

10/100base-Tx to 100base-Fx Media Converter
bargain
add to cart| Model NO. | WB-C550S20 |
| Wiring Devices | Integrated Wiring |
| Dimensions | 95 Mm × 70 Mm × 25 Mm × 25 Mm25 Mm × 25 Mm |
| Trademark | Webitelecomms |
| Origin | Ningbo China. |
| Type | Fiber Transceiver |
| Certification | CE, ISO, RoHS |
| Distances | 2 Km Multi-Mode, 120 Km Single Mode |
| Specification | CE, RoHS, ISO, SGS |
| HS Code | 8517709000 |
10/100Base-TX to 100Base-FX Media Converter
Overview
The Ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber.The electrical interface will Auto-Negotiate to a 10Mbps,or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
Key Features
1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
4. Automatic MDI/MDI-X crossover
5. Distances up to: 2 km Multimode, 120 km Single Mode
6. ST, SC, FC optical connectors
7. AC/DC powered
8. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
Applications
1.Access Control Systems
2.Building and Environmental Control Systems
3.Tamper Switch
4.10/100 Mbps Ethernet Media Converter
5.High Speed Computer Links
Technical Specifications
Parameters | Specifications |
Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
Wavelength | Multi-mode: 850 nm Single-mode: 1310 nm , 1550 nm |
Transmission Distance | Fiber: Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)u;m)u;m) Single-mode: 25/40/60/100/120 km UTP: Cat. 3/4/5/6: 100 m |
Port | One RJ45 port, One Fiber (ST/SC) |
MDI/MDI-X | Auto selection |
LED Indicator | PWR: Green Illuminated to indicate unit is operating under normal operation TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received 100M: Green Illuminated when data packets are being transmitted at 100 Mbps |
Power Supply | Outside: 5 V DC 1 A Built-in: 100 V to 240 V AC 50 Hz to 60 Hz |
Operating Temp | 0 °C to +70 °C70 °Ceg;C70 °C |
Storage Temp | -20 °C to +80 °C80 °Ceg;C80 °C |
Storage Humidity | 5% to 90% (non-condensing) |
Dimensions | 95 mm × 70 mm × 25 mm× 25 mm 25 mm× 25 mm |
Net Weight | 0.165 kg |
