General Description

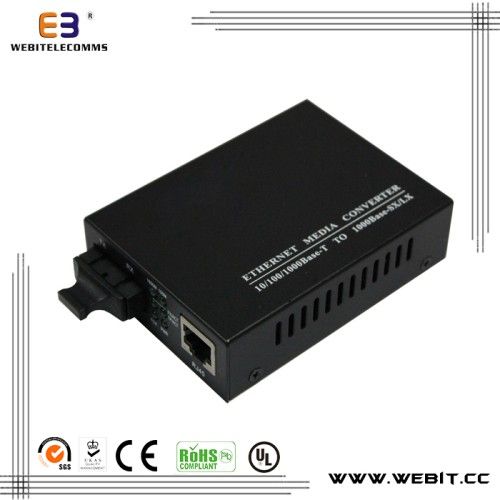

The WB-C2000 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Parameter
Data:
--Data Interface: Ethernet
--Data Rate:10/100/1000 Mbps
--IEEE802.3Compliant
--Full Duplex or Half Duplex Electrical
Electrical & Mechanical:nical:ical:
--Operating Voltage: AC100V~260V
--Power Dissipation: ≤5We;5We;5W
--Size:94mm(L)*70mm(W)*26mm(H)
Connectors:
--Optical: SC, 2 Fibers
--Power: Terminal Block
--Electrical: RJ45
Led Indicators:
--Optical Link/Data Activity
--Electrical Link/Data Activity
Environmental Conditions:
--Operating Temp: 0C to +70C
--Storage Temp: -20C to +80C
--Relative Humidity: 0% ~ 90% (non-condensing)
--MTBF: ﹥100,000 hoursours
3. Applications:
--Access Control Systems
--Building and Environmental Control Systems
--Tamper Switch
--10/100/1000 Mbps Ethernet Media Converter
--High Speed Computer Links
Ordering Information
