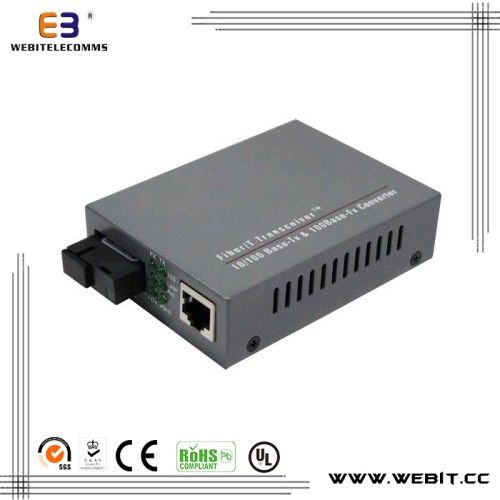

10/100 Base-Tx to 100 Base-Fx Media Converter

10/100 Base-Tx to 100 Base-Fx Media Converter

bargain

add to cart
Model NO. WB-E350
Wiring Devices Integrated Wiring
Data Rate 10/100/1000 Mbps
Dimensions 95mm*70 Mm*25mm
Specification CE, RoHS, ISO, SGS
HS Code 8517709000
Type Fiber Transceiver
Certification CE, ISO, RoHS
Shell Materials Iron
Trademark Webitelecomms
Origin Ningbo China.

Overview
The Webitelecomms® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.atus.atus.
Key Features
1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5. Auto MDI/MDI-X support on RJ45 port
6. Distances up to 120km, single fiber
7. AC or DC powered
8. LED Indicators
Technical Specifications

Parameters
Specifications

Standards
IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)

Wavelength
1310 nm / 1550 nm

Transmission Distance
20 km to 120km

Port
One RJ45 port, Single Fiber (SC/ST/FC)

MDI/MDI-X
Auto selection

MAC Address Table
I K

Buffer Size
1Mbit

Flow Control
Duplex:flow control ; Half duplex:back pressure

Time Delay
Store-and-forward:9.6us,Straight-through:0.9us

BER
<1/1000000000

Power Supply
Outside: 5 V DC 1 A
Built-in: 100 V to 240 V AC 50 Hz to 60 Hz

Operating Temp.
0 °C to +70 °C70 °Ceg;C70 °C

Storage Temp.
-20 °C to +80 °C80 °Ceg;C80 °C

Relative Humidity
5% to 90% (non-condensing)

Dimensions
95 mm × 70 mm × 25 mm× 25 mm 25 mm× 25 mm

Net Weight
0.165 kg

Order Information

Model
Description
Fiber Mode
Wavelength
Distance
Connector

WB-E350S20
10/100Base-Tx to 100Base-FX
SMF
A side: Tx1310 nm/ Rx1550 nm
B side: Tx1550 nm/ Rx1310 nm
20 km
SC

WB-E350S40
10/100Base-Tx to 100Base-FX
SMF
A side: Tx1310 nm/ Rx1550 nm
B side: Tx1550 nm/ Rx1310 nm
40 km
SC

WB-E350S60
10/100Base-Tx to 100Base-FX
SMF
A side: Tx1310 nm/ Rx1550 nm
B side: Tx1550 nm/ Rx1310 nm
60 km
SC

WB-E350S80
10/100Base-Tx to 100Base-FX
SMF
A side: Tx1310 nm/ Rx1550 nm
B side: Tx1550 nm/ Rx1310 nm
80 km
SC
