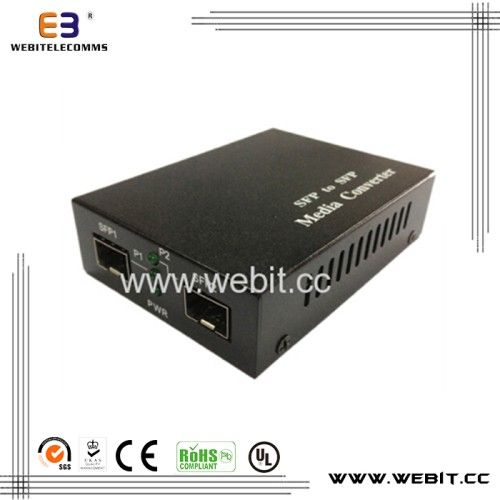

Giga SFP to SFP Converter with 2 Ports

bargain

Model NO.	WB-SFP-SFP
Wiring Devices	Integrated Wiring
Condition	New
Interface	2 SFP Port
Power	External Power Supply AC100~240V/DC5V
Storage Temp.	20 °c to +80 °c+80 °cg;c+80 °c
Dimensions	26×71×93mm(H×w×d)es;93mm(H×w×d);w×d)es;93mm(H×w×d)
Shell Material	Iron
Specification	CE, RoHS, ISO, SGS
HS Code	8517709000
Type	Fiber Transceiver
Certification	CE, ISO, RoHS
Certificate	RoHS, CE,ISO
Transfer Speed Rate	2~2.5gbps
Environment Temp.	0 °c to +70 °c+70 °cg;c+70 °c
Humidity	5% to 90% (Non-Condensing)
Data Rate	2~2.5gbps
Trademark	Webitelecomms
Origin	Ningbo China.

-----------------------------------------------------------------------Overview------------------------------------------------------------------
This converter has two SFP interfaces. It can converts various fiber digital signals between SFP modules of
different wavelength, distance, mode(single / multi-mode,UTP/ fiber) under the two same signal rate, including
Ethernet, ATM, SDH and monitor signal. Such as the converter of 1310/1550nm, 1490/1550nm. It adopts high rate
convert circuit and high quality IC chips, high stability and performance, can be widely used in all kinds of fiber digital
transmission.
----------------------------------------------------------------------Mainly Features-----------------------------------------------------------
1. Realize digital signal conversion between the SFP modules under two same signal rate, but different wavelength,
distance and mode type.
2. Support 2~2.5Gbs Digital optical signal conversion
3. Fast speed, shorter delay, High efficiency
4. Includes two SFP ports
5. Protocal-independent operation
6. Converts between dissimilar fiber modes and Wavelengths
7. Includes diagnostic LEDs
8. Hot-swappable architecture Small and Wavelengths
9. Supports an external 5VDC power module
10.Extended temperature range from 0°C to 70 °C 70 °Cg;C 70 °C
11. Cam use all standard MSA compliant SFP devices
12. Provides Extensive Diagnostic LED function
-------------------------------------------------------------Technical specification----------------------------------------------------------

Interface	2 SFP port
Transfer speed rate	2~2.5Gbps
Power	External power supply AC100~240V/DC5V
LED indicator	Power: power status
LED indicator	FX1Link, FX2 Link: SFP connection status indicator, easy to monitor working and bug diagnose.
Environment Temp.	0 °C to +70 °C70 °Ceg;C70 °C
Storage Temp.	-20 °C to +80 °C80 °Ceg;C80 °C
Humidity	5% to 90% (non-condensing)
Dimensions	26×71×93mm(H×W×D)s;93mm(H×W×D)s;W×D)s;93mm(H×W×D)
