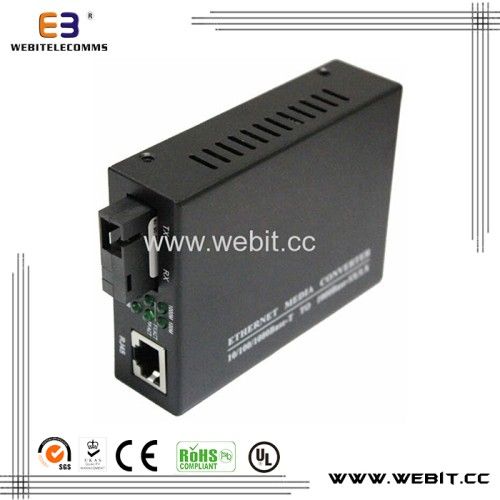

Ethernet Bidi Media Converters with Indicators

Ethernet Bidi Media Converters with Indicators

bargain

add to cart
Model NO. WB-C2100LX
Wiring Devices Integrated Wiring
Condition New
Wavelength Multimode: 850nm/Single Mode: 1310nm or 1550nm
Port One RJ45 Port, Dual Fiber (Sc / St ) Port
Mac Address Table 4k
Operating Temperature 0 °c to +70 °c+70 °cg;c+70 °c
Relative Humidity 5% to 90% (Non-Condensing)
Specification CE, RoHS, ISO, SGS
HS Code 8517709000
Type Fiber Transceiver
Certification CE, ISO, RoHS
Certificate RoHS, CE,ISO
Transmission Distance Multimode: 2km /Single Mode: up to 120km
Mdi/Mdi-X Auto Selection
Memory Buffer 256k
Storage Temperature -20 °c to +80 °c+80 °cg;c+80 °c
Trademark Webitelecomms
Origin Ningbo China.

WB-C2100LX Series of single mode
10/100/1000Mbps Ethernet Electrical to Optical Bidi media converter
------------------------------------------------------------------------Description--------------------------------------------------------------
This Ethernet Bidi media converters with external power supply are designed to transmit and receive
10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps
Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are
environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming
equipment operating status.
----------------------------------------------------------------------Applications---------------------------------------------------------------
Access Control Systems
Building and Environmental Control Systems
Tamper Switch
10/100/1000Mbps Ethernet Media Converter
High Speed Computer Links
----------------------------------------------------------------------Features-------------------------------------------------------------------
10/100/1000Mbps Ethernet
10/100/1000 BASE-T/TX electrical port
1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
-Optical port supports 1000Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 120KM with optional SFPs
-Voltage transient protection on all power and signal input.output lines provides unconditional protection from power
surges and other voltage transient events
-No in-field optical adjustments required
-LED Indicators
----------------------------------------------------------------Specifications-------------------------------------------------------------------

Parameters
Specifications

Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX

Wavelength
Multimode: 850nm
Single mode: 1310nm or 1550nm

Transmission Distance
Multimode: 2km
Single mode: up to 120km

Port
One RJ45 port, Dual fiber (SC / ST ) port

MDI/MDI-X
Auto selection

Mac address table
4K

Memory buffer
256K

Forward / Filter Rate
10M: 14,880/14,880pps
100M: 148,800/148,800pps
1000M: 1,488,000/1,488,000pps

Power Supply
Outside: 5 V DC 2 A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Operating Temperature
0 °C to +70 °C70 °Ceg;C70 °C

Storage Temperature
-20 °C to +80 °C80 °Ceg;C80 °C

Relative Humidity
5% to 90% (non-condensing)

Dimensions
95mm * 70 mm * 25mm

Net Weight
0.165 kg

Ordering Information:

Part Number
Description

WB-C2100LX20B1/B2
Single-mode 10/100/1000M 20KM SC

WB-C2100LX40B1/B2
Single-mode 10/100/1000M 40KM DFB laser SC

WB-C2100LX60B1/B2
Single-mode 10/100/1000M 60KM DFB laser SC

WB-C2100LX80B1/B2
Single-mode 10/100/1000M 80KM DFB laser SC
