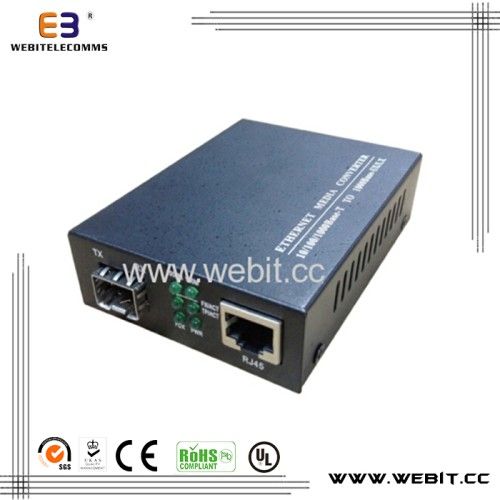

10/100/1000 Mbps Ethernet Media Converter with One RJ45 Port, One SFP

bargain

Model NO.	WB-C108
Wiring Devices	Integrated Wiring
Condition	New
Mdi/Mdi-X	Auto Selection
Orage Humidity	5% to 90% (Non-Condensing)
MOQ	50 Pieces
Trademark	Webitelecomms
Origin	Ningbo China.
Type	Fiber Transceiver
Certification	CE, ISO, RoHS
Port	One RJ45 Port, One SFP
Operating Temperature	0 Degree to 70 Degree
Wavelength	Multi-Mode: 850 Nm/Single-Mode: 1310 Nm, 1550 Nm
Payment Term	L/C, Wu, T/T
Specification	CE, RoHS, ISO, SGS
HS Code	8517709000

--------------------------------------------------------------------------Overview---------------------------------------------------------------
This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for
Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface
(TX) and 1000M SFP socket (FX). According to customers' requirements, this media converter supports single-
mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-
mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter
takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to
manually configure or monitor settings.
--------------------------------------------------------------------------Key Features----------------------------------------------------------
* Modular design, plug and play
* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
* Available in single fiber WDM versions - 1310/1550 nm wavelengths used
* Supports automatic cross of twisted pair ports
* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
------------------------------------------------------------Technical Specifications ---------------------------------------------------------

Parameters	Specifications
Standards	IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T
Wavelength	Multi-mode: 850 nm Single-mode: 1310 nm, 1550 nm
Transmission Distance	Fiber: Multi-mode: 550 m (fiber size: 50/125 μm)u;m)u;m) Single-mode: 10/20/50/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm)u;m)u;m) UTP: Cat. 5e or Cat. 6: 100 m
Port	One RJ45 port, One SFP
MDI/MDI-X	Auto selection
LED Indicator	PWR: Illuminated for normal operation ALM: Illuminated when failure occurs on fiber or copper link LNK/ACT: Fiber link - Illuminated when receiving link pulses from compliant devices, Flashing when data packets are being transmitted/ received
Power Supply	Outside: 5 V DC 2 A Built-in: 100 V to 240 V AC 50Hz to 60 Hz
Operating Temperature	0 °C to +70 °C70 °Ceg;C70 °C
Storage Temperature	-20 °C to +80 °C80 °Ceg;C80 °C
Storage Humidity	5% to 90% (non-condensing)

---------------------------------------------------------------Order Information---------------------------------------------------------------

Model	Description
WB-C106	10/100Base-Tx to 100Base-FX, SFP to RJ45 media converter
WB-C108	10/100/1000Base-Tx to 1000Base-FX, SFP to RJ45 media converter
