10/100base-Tx to 100base-FX Media Converter (WB-C550S20)

bargain

Model NO.	WB-C550S20
Wiring Devices	Integrated Wiring
Condition	New
Payment Term	L/C, Wu, T/T
Wavelength	Multi-Mode: 850 Nm/Single-Mode: 1310 Nm, 1550 Nm
Power Supply	Outside: 5 V DC 1 a/Built-in: 100 V to 240 V AC 50
Storage Humidity	5% to 90% (Non-Condensing)
Net Weight	0.165 Kg
Specification	CE, RoHS, ISO, SGS
HS Code	8517709000
Type	Fiber Transceiver
Certification	CE, ISO, RoHS
MOQ	50 Pieces
Standards	IEEE802.3u (100base-Tx/Fx), IEEE 802.3 (10base-T)
Port	One RJ45 Port, One Fiber (St/Sc)
Operating Temp	0 Degree to 70 Degree
Dimensions	95 Mmx 70 Mm X 25 Mm
Trademark	Webitelecomms
Origin	Ningbo China.

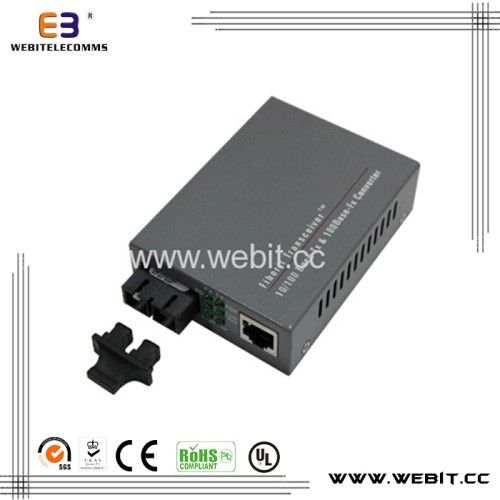

10/100Base-TX to 100Base-FX Media Converter
--------------------------------------------------------------------------Overview---------------------------------------------------------------
The Ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber.The electrical interface will Auto-Negotiate to a 10Mbps,or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
--------------------------------------------------------------------------Key Features----------------------------------------------------------
1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
4. Automatic MDI/MDI-X crossover
5. Distances up to: 2 km Multimode, 120 km Single Mode
6. ST, SC, FC optical connectors
7. AC/DC powered
8. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
-----------------------------------------------------------------------Applications--------------------------------------------------------------
Access Control Systems
Building and Environmental Control Systems
Tamper Switch
10/100 Mbps Ethernet Media Converter
High Speed Computer Links
----------------------------------------------------------------Technical Specifications-----------------------------------------------------

Parameters	Specifications
Standards	IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Wavelength	Multi-mode: 850 nm Single-mode: 1310 nm , 1550 nm
Transmission Distance	Fiber: Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)u;m)u;m) Single-mode: 25/40/60/100/120 km UTP: Cat. 3/4/5/6: 100 m
Port	One RJ45 port, One Fiber (ST/SC)
MDI/MDI-X	Auto selection
LED Indicator	PWR: Green Illuminated to indicate unit is operating under normal operation TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received 100M: Green Illuminated when data packets are being transmitted at 100 Mbps
Power Supply	Outside: 5 V DC 1 A Built-in: 100 V to 240 V AC 50 Hz to 60 Hz
Operating Temp	0 °C to +70 °C70 °Ceg;C70 °C
Storage Temp	-20 °C to +80 °C80 °Ceg;C80 °C
Storage Humidity	5% to 90% (non-condensing)
Dimensions	95 mm × 70 mm × 25 mm× 25 mm 25 mm× 25 mm
Net Weight	0.165 kg
