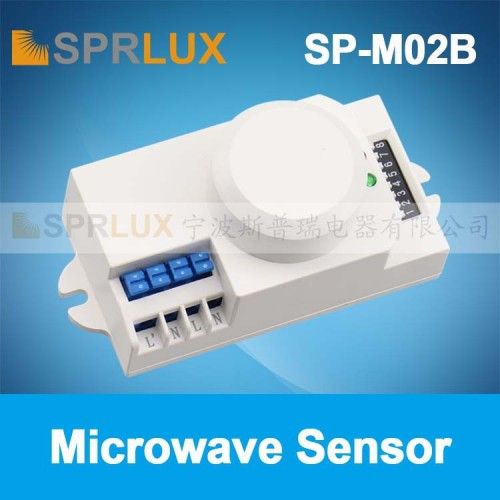

Microwave sensors are active sensors, HF sensors emit high-frequency electromagnetic waves (5.8GHz) and receive their echoes, which detect changes in echoes even within the detection range of tiny movements.Then the microprocessor triggers The signal through the door, glass plate and thin walls are likely to be detected.

Note: People or objects moving toward the light when the detection of the best!

Note: This sensor high-frequency output is less than 10mW, but the mobile phone and microwave transmission power of one percent.

Technical Parameters

Working voltage: AC220 ~ 240V 50 / 60Hz

Load power: 600W (inductive load) / 1200W (resistive load)

Installation: wall or ceiling installation (with ceiling)

Sensor detection principle: microwave motion detection

HF system: 5.8 GHz +/- 75 MHz CW radio, ISM band

Detection angle: 360 °

Detection range: 1-8m (radius), adjustable

Working delay: 8 seconds to 30 minutes, adjustable

Light control illumination: 2 ~ 2000LUX

Power consumption: Approximately 0.9W

Operating temperature: -10 ... + 40 ° C

Protection class: IP 20
