Peristaltic pump stepper motor micro peristaltic pump tube pump self-priming pump for low flow rate peristaltic pump feed pump

60-120 CNY (8.74-17.48USD)

add to cart

Product parameters:

Brand: other
Model: AB25
Material: engineering plastic
Drive: electric
Uses: pipeline pump
Principle: the roller pump
Performance: does not block
Transportation media: clean water pump
Lift: 5
Weight: 0.5
Voltage: 12
Specifications: single pump head pump head + DC geared motor, pump head + stepper motors

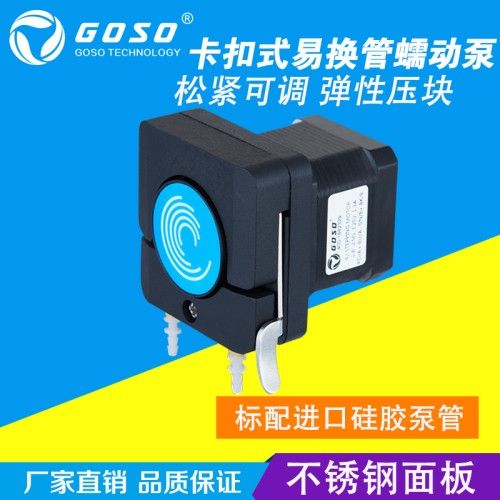

Peristaltic pump tube peristaltic pump with motor, tubing and fittings.

Advantages:

Spring-type pump heads, roller shafts borrowing a motor shaft, fit the hose. For OEM package.

Description:

This is a motor integrated pump head pump head, the maximum volume can be reduced, reasonable structure, the most suitable for OEM pump heads, press on with flexible, Adaptive different hoses.

Peristaltic pump specifications:
Speed range: 1~ 50.0rpm, reverse reversible
Speed resolution: 1rpm (external 0.1rpm)
Power consumption< 10W
Operating environment: temperature 0~ 40 ℃, relative humidity ﹤ 80%
Stepper motors: 42
Pump head: 80g (stepping motor 400g)
Protection class: IP31
Functional characteristics
Small size, light weight
Can be embedded in the face plate or installed on a bracket
Flexible hose replacement easy
Suitable for OEM products

Flow range 0-160ML/min (can change different specifications pipe)

Overall dimensions:
