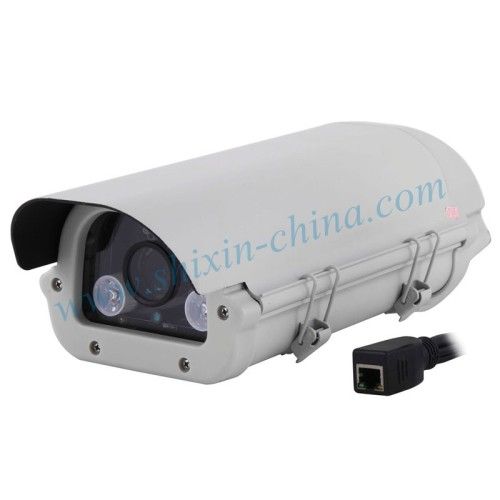

Waterproof 800tvl Sony CCD Box IR IP Camera (IP-2318H)
| Model NO. | IP-2318H |
| Style | Box Camera |
| Sensor | CCD |
| Horizontal Resolution | 800tvl |
| Certification | CE, CCC, RoHS |
| Effective Distance | 50m |
| Remote Control | With Remote Control |
| Image Sensor | 800tvl 1/3 Sony CCD |
| Lens | 8mm |
| Compression | H.264, Dual Stream Compression |
| System Interface | 10m/100m Ethernet Port (RJ45) |
| Transport Package | Standard Export Carton |
| Origin | Shenzhen, China Mainland |
| Technology | Infrared |
| Type | IP Camera |
| HDMI Format | IP Camera |
| Kind | Manual Focus Lens |
| Feature | Waterproof / Weatherproof, Auto BLC |
| Sensor Size | 1/3 inch |
| Product Name | 800tvl Sony CCD Box IR IP Camera |
| Model Number | IP-2318h |
| 2PCS Array IR LED | IR Distance: 50m |
| Frame Rate | PAL: 1-25fps/S, NTSC:1-25fps/S |
| Trademark | SHIXIN or OEM |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904100 |
Waterproof 800TVL SONY CCD Box IR IP Camera (IP-2318H)
- IR IP Camera
- IR BOX IP Camera
- SONY CCD IP Camera
IP Waterproof Camera
* Waterproof IR camera, IR Distance 50-80M
* 1/3' Sony CCD 800TVL H. 264 compressionession
* D1: 720X576 half-D1(576*354) CIF: 352X288 QCIF: 176X144 * Support 32G SD card local storage
* One channel audio: Built-in microphone
* 1CH alarm input, 1CH output Alarm
* 10/100M BPS high-speed Ethernet automatic detection
* Motion detection, can be set to the e-mail notify or transmit images to FTP
* High safe, set up multiple user accounts and passwords
* Multi-level access: Administrator / authorized user / anonymous login.
* Support up to10 remote viewers at the same time
* Video file formats: AV or AVI for optional
* To provide a multi-screen Windows software (1/4/6/8/9/12/16/20/25/30CH optional)
* 32-bit ARM9 RISC CPU, 2MB flash memory, 8 MB SDRAM, 32MB DDRAM
* High-quality audio decode: G. 726ADPCM 16-40kbps
* Protocol: HTTP, TCP / IP, UDP, SMTP, PPPoE, DDNS, DHCP, FTP, SNMP, ARP, NTP, uPnP, TFTP
* Power supply: 12VDC/24VAC; AC110-220V; 9W
* Accessories: One power, one disk, the disk includes software and manual
If there is any question, please don't hesiatet to contact us. We will try our best to cooperate with you.
- IR IP Camera
- IR BOX IP Camera
- SONY CCD IP Camera
IP Waterproof Camera
* Waterproof IR camera, IR Distance 50-80M
* 1/3' Sony CCD 800TVL H. 264 compressionession
* D1: 720X576 half-D1(576*354) CIF: 352X288 QCIF: 176X144 * Support 32G SD card local storage
* One channel audio: Built-in microphone
* 1CH alarm input, 1CH output Alarm
* 10/100M BPS high-speed Ethernet automatic detection
* Motion detection, can be set to the e-mail notify or transmit images to FTP
* High safe, set up multiple user accounts and passwords
* Multi-level access: Administrator / authorized user / anonymous login.
* Support up to10 remote viewers at the same time
* Video file formats: AV or AVI for optional
* To provide a multi-screen Windows software (1/4/6/8/9/12/16/20/25/30CH optional)
* 32-bit ARM9 RISC CPU, 2MB flash memory, 8 MB SDRAM, 32MB DDRAM
* High-quality audio decode: G. 726ADPCM 16-40kbps
* Protocol: HTTP, TCP / IP, UDP, SMTP, PPPoE, DDNS, DHCP, FTP, SNMP, ARP, NTP, uPnP, TFTP
* Power supply: 12VDC/24VAC; AC110-220V; 9W
* Accessories: One power, one disk, the disk includes software and manual
| Serial no. | Type | Specification |
| Image Sensor | 1/3 SONY CCD, 800TVL | |
| Lens | 8mm | |
| Min. illumination | 0.1LUX / F1.2 | |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 ADPCM |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded eCos system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside ports | GPIO port | 1ch Input alarm, 1ch Output alarm |
| RS-485 | Support | |
| Video port | 1ch output video(Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| PTZ | Rotation angle | N/A |
| Rotation speed | N/A | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Preset | You can setup 64 presets | |
| Preset Line | 4lines, each line can set 16 presets | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 20) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 100-220 V 50/60Hz Output DC 12V/2000mA |
| Work environment | Temperature: -10° C- 55° C(Automatic-controlled temperature function is optional) Humidity: 0% - 80%RHG - 80%RHG - 80%RHG | |
| Power | 14.4W | |
| Dimension | 335mm(L) X300mm(W) X410mm(H) | |
| Weight | 1.51Kg |
