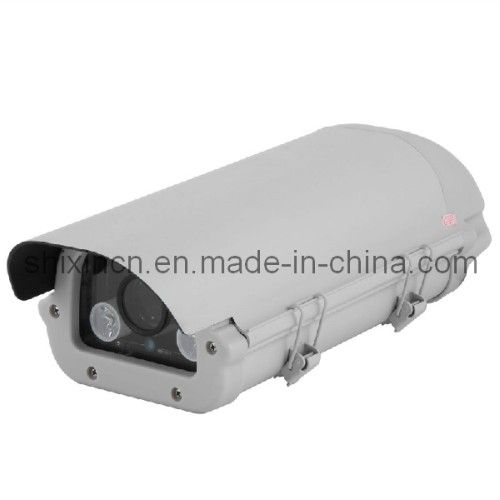

Waterproof IP Camera, IP Camera, IP66 Weatherproof IP Camera
| Model NO. | IP-2318H |
| Style | Fixed Focus Lens |
| Sensor | CCD |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Special Technology | Built-in Auto Temperature Controller |
| Transport Package | Natural Package |
| Origin | Shenzhen, China |
| Technology | Infrared |
| Type | IP Camera |
| Horizontal Resolution | 800tvl |
| Feature | Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC |
| Sensor Size | 1/3 inch |
| Trademark | SHIXIN |
| Specification | 310mm(L) 155mm(W) X146mm(H) |
CLEARANCE SALE: Waterproof IP Camera, Anti-Water IP Camera, IP66 Weatherproof IP Camera (IP-2318H)
Standard H. 264 video compression
G. 711 audio compression
1/3' Sony CCD SensorSensor
Support auto Day/Night
Support IP66 standard waterproof, 30M IR night version
Two-way audio
Multi-level user access with password protection
Support motion detection, event trigger
Standard H. 264 video compression
G. 711 audio compression
1/3' Sony CCD SensorSensor
Support auto Day/Night
Support IP66 standard waterproof, 30M IR night version
Two-way audio
Multi-level user access with password protection
Support motion detection, event trigger
| Serial No. | Type | Specification |
| CCDmodule | Image sensor | 1/3 SONY CCD, 420TVL |
| Lens | CS port 16mm lens(the lens' angle is optional) | |
| Min. illumination | 0.5LUX / F1.2 | |
| Day/night | IR LED | 36pcs 8mm IR LED, IR Distance can be up to 40m |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded Linux system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside Port | GPIO port | 1ch input Alarm, 1ch output Alarm |
| SD Card | Support (option) | |
| Video port | 1ch output video. (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 100-240 V 50/60Hz Output DC 12V/1.5A |
| Work Environment | Temperature: -10° C-55° C Humidity: 0%- 80%RHG(Waterproof)terproof)terproof) | |
| Power | 8W | |
| Dimension | 310mm(L) 155mm(W) X146mm(H) | |
| Weight | 1.04Kg |
