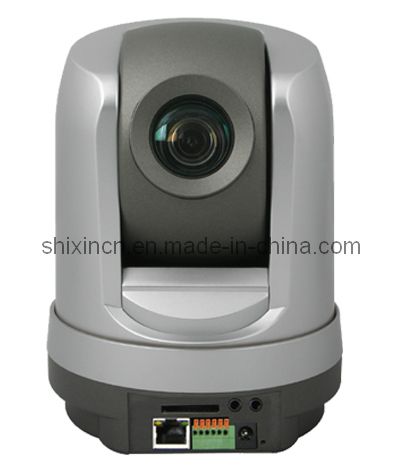

PTZ IP Camera, 27x Optical Zoom Indoor Dome IP Camera (IP-109H)
| Model NO. | IP-109H |
| Sensor | CCD |
| Technology | Pan / Tilt / Zoom |
| Effective Distance | 10-30m |
| Compression | H.264 |
| Transport Package | Natural Package |
| Origin | Shenzhen, China |
| Type | IP Camera |
| Speed | Medium-speed Dome |
| Feature | Mini Size, High Definition, Auto BLC |
| Focal Length | Zoom Lens |
| Trademark | SHIXIN |
| Specification | 166mm(L) X142mm(W) X170mm(H) |
27x optical zoom lens
Standard H. 264 video compression
G. 711 audio compression
1/3' Sony CCD SensorSensor
Two-way audio supported
Pan: 0° ~355° , Tilt: 0° ~90° , Speed: 15° /s; , Speed: 15° /s; /s; , Speed: 15° /s
Support SD Card
Multi-level user access with password protection
Support motion detection
Support smartphone viewing like Android
Standard H. 264 video compression
G. 711 audio compression
1/3' Sony CCD SensorSensor
Two-way audio supported
Pan: 0° ~355° , Tilt: 0° ~90° , Speed: 15° /s; , Speed: 15° /s; /s; , Speed: 15° /s
Support SD Card
Multi-level user access with password protection
Support motion detection
Support smartphone viewing like Android
| Serial no. | type | specification |
| 27X all-in-one camera | Image Sensor | 1/3 SONY CCD, 420TVL |
| focus | 3.2-86.4mm | |
| Min. illumination | 0.1LUX / F1.2 | |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Built-in microphone, and you can also connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded eCos system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet Port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside port | GPIO port | 1ch input alarm, 1ch output alarm |
| RS-485 | Yes | |
| SD Card | Support | |
| Video port | 1ch output video (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| PTZ | Visual angle | Pan: 355° , Tilt: 100° 100°deg; 100° |
| Rotation speed | 12° /sg; /sg; /s | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 100-240 V 50/60Hz Output DC 12V/1.5A |
| Work Environment | Temperature: -10 - 55 Humidity: 0% - 80%RHG | |
| Power | 8.5W | |
| Dimension | 166mm(L) X142mm(W) X170mm(H) | |
| Weight | 1.0Kg |
