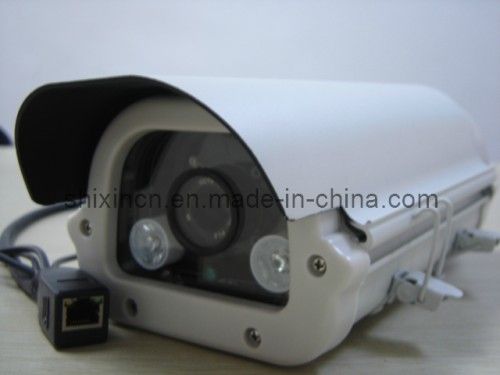

Waterproof IP Camera with IR Night Vision Temperature Control Device
| Model NO. | IP-2318H |
| Style | Fixed Focus Lens |
| Sensor | CCD |
| Horizontal Resolution | 420tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Trademark | Shixin or OEM or ODM |
| Specification | CE, FCC, RoHS |
| HS Code | 8529904201 |
| Technology | Infrared |
| Type | IP Camera |
| HDMI Format | 720P |
| Kind | Manual Focus Lens |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| IR Distance | 30meters |
| Transport Package | Neutral Box Packing |
| Origin | Shenzhen, China |
Waterproof IP Camera with IR Night Vision Temperature Control Device
Waterproof IR camera, IR Distance 50M, CS interface 12mm Lens
Built-in Temperature control device (built-in heater inside)
1/3' Sony CCD 420TVL H. 264 compressionession
DI: 720x576 CIF: 352x288 QCIF: 176x144
One channel audio, microphone inside
10/100M BPS high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
Working Environment: Temperature: -30° C - 50° C / Humidity: 0% - 80%RHG - 80%RHG - 80%RHG
Waterproof IR camera, IR Distance 50M, CS interface 12mm Lens
Built-in Temperature control device (built-in heater inside)
1/3' Sony CCD 420TVL H. 264 compressionession
DI: 720x576 CIF: 352x288 QCIF: 176x144
One channel audio, microphone inside
10/100M BPS high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
Working Environment: Temperature: -30° C - 50° C / Humidity: 0% - 80%RHG - 80%RHG - 80%RHG
| Series | Style | Specification |
| CCD Mould | Image sensor | 1/3 SONY CCD, 420TVL |
| Lens | CS interface 12mm Lens | |
| Min Illumination | 0.5LUX / F1.2 | |
| Night version | IR LED | Dot Matrix IR LED, IR distance can be 50m, outdoor |
| Video | Compression | H. 264 |
| Resolution | D1(720*576) HalfD1(720*288) CIF(352*288) QCIF(176*144) | |
| Frame | 1~30fps@D1(NTSC) 1~25fps@D1(PAL) | |
| Audio | Audio | G. 711 |
| Duplex audio | Support | |
| MIC | Connect the voice pickup device | |
| Software | WEB Browser | IE 6.0 or above |
| Safety | password protection, two grade right | |
| hardware | CPU | 32 Bit ARM926EJ-S RISC |
| Operation system | Built-in Linux system | |
| DDR | 256M | |
| Flash | 32M | |
| Web | Lan interface | 10/100MBaseT, RJ-45 |
| Web protocol | TCP/IP, UDP, HTTP, FTP, UPnP, DDNS, PPPoE, DHCP, SMTP | |
| Outside interface | GPIO interface | 1cha alarm input, 2ch alarm output |
| RS-485 | Have RS-485 interface | |
| Audio interface | 1 ch input 1 ch output | |
| Video interface | 1 ch input 1 ch output | |
| Power supply interface | Yes | |
| Function | OSD | Support |
| DDNS | support several DDNS server in China | |
| User management | Administrator, common user, anonymous user(Max. viewer: 20) | |
| Video management | brightness, contrast and saturation adjustable support several screen switch, single screen support 30 camera, | |
| Bandwidth | suitable for different bandwidth by adjusting the resolution, the frame and the compression rate | |
| SD card recording | Support(need open the cover) | |
| Video keep out | Support | |
| Motion detection | Can setup the motion detected area, validity time and sensitivity. Support 4 alarm ways: alarm hummer. Customer notification, recording and email notification. | |
| General | Power | Input AC 100-240 V 50/60Hz Output: DC 12V/1.5A |
| Temperature control | Built-in Temperature control device(built-in heater inside) | |
| Working Environment | Temperature: -30° C- 50° C/ Humidity: 0% - 80%RHG - 80%RHG - 80%RHG | |
| Packing side | 300mm(L) X90mm(W) X140mm(H) |
