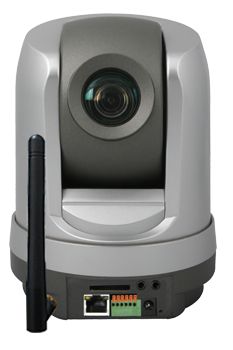

27X Optical Zoom WiFi H. 264 Dome PTZ IP Camera for Indoor Home Security (IP-109HW)
| Model NO. | IP-109HW |
| Style | Zoom Lens |
| Sensor | CCD |
| Kind | Autofocus Lens |
| Feature | High Definition, Mini Size, Auto BLC |
| Sensor Size | 1/3 inch |
| Product Name | WiFi H. 264 Dome PTZ IP Camera |
| PTZ Camera | 27X Optical Zoom |
| P2p | Support iPhone, Android Phone APP. |
| Focus | F=3.2-86.4mm |
| System Interface | 10m/100methernet Port (RJ45) |
| Trademark | SHIXIN |
| Specification | 166mm(L) X142mm(W) X170mm(H) |
| HS Code | 8529904100 |
| Technology | Pan / Tilt / Zoom |
| Type | IP Camera |
| Horizontal Resolution | 600tvl |
| Certification | CE, FCC, RoHS |
| Effective Distance | ≧30m |
| Remote Control | With Remote Control |
| Compression | H. 264 Dual Stream Compression |
| Image Sensor | 480tvl 1/4' Sony CCD SenorD Senor |
| Model Number | IP-109hw |
| Pan/Tilt | 355degree/90degree |
| Frame Rate | PAL: 1-25fps/S, NTSC:1-25fps/S |
| Transport Package | Natural Package |
| Origin | Shenzhen, China |
WiFi H. 264 Dome PTZ IP Camera for Indoor Home Security with 27X Optical Zoom (IP-109HW)
WiFi IP camera, H. 264 IP camera. PTZ speed dome IP camera, suitable for home secuity, baby monitor.
Support WiFi wireless(WiFi(WEP/WPA/WPA2 encryption ) optional
27x optical zoom lens
Standard H. 264 video compression
G. 711 audio compression
1/4' Sony CCD SensorSensor
Two-way audio supported
Pan: 0° ~355° , Tilt: 0° ~90° , Speed: 15° /s; , Speed: 15° /s; /s; , Speed: 15° /s
Support SD Card
Multi-level user access with password protection
Support motion detection, screen mask and shelter-area for privacy
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
WiFi IP camera, H. 264 IP camera. PTZ speed dome IP camera, suitable for home secuity, baby monitor.
Support WiFi wireless(WiFi(WEP/WPA/WPA2 encryption ) optional
27x optical zoom lens
Standard H. 264 video compression
G. 711 audio compression
1/4' Sony CCD SensorSensor
Two-way audio supported
Pan: 0° ~355° , Tilt: 0° ~90° , Speed: 15° /s; , Speed: 15° /s; /s; , Speed: 15° /s
Support SD Card
Multi-level user access with password protection
Support motion detection, screen mask and shelter-area for privacy
| Serial no. | type | specification |
| 27X all-in-one camera | Image Sensor | 1/4 SONY CCD, 600TVL |
| focus | 3.2 - 86.4mm | |
| Min. illumination | 0.1LUX / F1.2 | |
| Wireless | WiFi | Built-in WIFI function, support 802.11. b/g/n Protocol |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Built-in microphone, and you can also connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded eCos system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet Port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside port | GPIO port | 1ch input alarm, 1ch output alarm |
| RS-485 | Yes | |
| SD Card | Support | |
| Video port | 1ch output video (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| PTZ | Visual angle | Pan: 355° , Tilt: 100° 100°deg; 100° |
| Rotation speed | 12° /sg; /sg; /s | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 100-240 V 50/60Hz Output DC 12V/1.5A |
| Work Environment | Temperature: -10 - 55 Humidity: 0% - 80%RHG | |
| Power | 8.5W | |
| Dimension | 166mm(L) X142mm(W) X170mm(H) | |
| Weight | 1.0Kg |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
