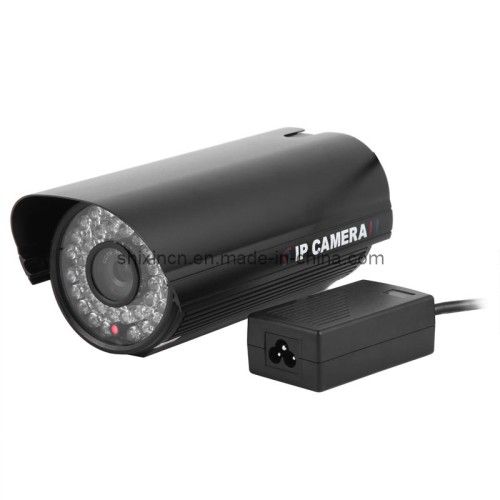

Powerline Communication Waterproof IR IP Camera (IP-150HPLC)
| Model NO. | IP-150HPLC |
| Style | Box Camera |
| Sensor | CCD |
| Kind | Manual Focus Lens |
| Effective Distance | ≧30m |
| Compression | H. 264 |
| Dimensions | 175mm(L)*95mm(W)*155mm(H)Exclude Bracket |
| Transport Package | in Standard Packing |
| Origin | Shenzhen, China |
| Technology | Infrared |
| Type | IP Camera |
| Horizontal Resolution | 800tvl |
| Feature | Waterproof / Weatherproof |
| Sensor Size | 1/3 inch |
| IR Distance | 8mm IR LED, IR Night Vision up to 20 Meter |
| Trademark | shixin |
| Specification | Normal |
IP Camera support PLC( power line communication), more conveniently to be connected to internet.
With High definition interlace scanning megapixel CMOS sensor
Real-time frame rate up to 25fps @ 720P resolution, H. 264 compression
Support external alarm input and output
Built-in SD card slot for local storage
Support motion detection.
Multiple Simultaneous Steams, and frame
Built-in Web server, support IE browser
Support up to 10 remote viewers at the same time
Two-way audio & video communication, support mobileobileobile
Compatible with general SDK software
With High definition interlace scanning megapixel CMOS sensor
Real-time frame rate up to 25fps @ 720P resolution, H. 264 compression
Support external alarm input and output
Built-in SD card slot for local storage
Support motion detection.
Multiple Simultaneous Steams, and frame
Built-in Web server, support IE browser
Support up to 10 remote viewers at the same time
Two-way audio & video communication, support mobileobileobile
Compatible with general SDK software
| Interface | PLC port |
| Power Source | 85VAC~265VAC |
| Compression | H. 264 |
| Video Output Rate | 32K~4Mbps/1M~16Mbps |
| Audio Compression Standard | G. 711 |
| Audio Bit Rate | 64Kbps |
| Image Size | 720*576(25FPS) 432*240(25FPS) 704*576 704*288 PAL |
| 720*576(30FPS) 432*240(30FPS) 704*576 704*288 NTSC | |
| Mobile View | Support |
| Protocol | PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, UPNP, |
| SMTP, FTP, SIP, DDNS, DNS | |
| Motion Detection | Support |
| Area Mask | Support |
| Password Protection | Support |
| Alarm I/O | 1-In 1-Out(Option) |
| IR Distance | 36 pcs 8mm IR LED, IR Night Vision up to 20 meters indoor |
| Lens Type | 8mm(standard)(4mm, 6mm, 12mm, 16mm IR Varifocal CS Lens Option) |
| Image Sensor | 800 TVL 1/3 SONY CCD |
| Signal System | NTSC/PAL |
| Exposure Mode | Auto Exposure Auto BLC Auto AGC |
| Electronic Shutter | 1/50-1/120, 000sec/automatic control |
| Min. Illumination | 0.5Lux at F1.2; 0 Lux IR ON |
| Video Bit Rate | 500Kbit/S-3Mbit/S |
| Waterproof | Support |
| Operation Temperature/Work Humidity | 0° C-45° C(32° F-133° F)eg; F-133° F); F)eg; F-133° F) |
| Humidity: 10-90% no condensation | |
| Video Outpurt | PLC cable |
| Power Supply | Output: 12VDC/1.5A; Input: 100- 240VAC, 50- 60Hz |
| Dimensions | 175mm(L)*95mm(W)*155mm(H)Exclude Bracket |
| Weight | 1.02kg(Net Weight) |
