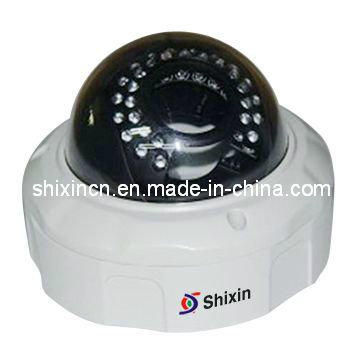

1/3' Megapixel IR dome camera, explosion-proof IP camera (IP-05HM)P-05HM)
1. With High definition interlace scanning megapixel CMOS sensor
2. Real-time frame rate up to 25fps @ 720P resolution, H. 264 compression
3. Support motion detection.
4. Multiple Simultaneous Steams, and frame
5. Built-in Web server, support IE browser
6. Support up to 10 remote viewers at the same time
7. Compatible with general SDK software
Compression H. 264
Image Sensor 1/3' Megapixel CMOS sensorsensor
Lens Megapixel Lens, 6mm focus, CS (optional)
Day/Night Dual filter switching (IR CUT)
IR LED 30PCS 5mm IR LED, IR distance can be 20m
Min. Illumination 0.5Lux @ F1.2; 0 Lux (IR LED ON)
Image Resolution 1280*960; 1280X720
Max Frame Rate 25fps@1280*960; 25fps@1280X720
Bit Stream 32 Kbps - 8 Mbps
Intelligent Video Motion detection (Max 4 area)
Audio Input 3.5mm LINE-IN,
Audio Output 3.5mm LINE-OUT
Alarm Input 1 CH switching value input, Vin<=45V or Iin <=25mAt;=25mA
Alarm Output 1CH relay output, 125VAC/0.5A, 30VDC/2A, Normal open
Audio Compression G. 711
Alarm Intelligent Video and Alarm Input Way: Trigger alarm output, Send by Email/ upload pictures to FTP, local store
Dual Stream Support
Security Password protection, User Rights Management
Network Interface 10M/100M, auto synchronization, RJ45
Protocols TCP, UDP, IP, HTTP, DHCP, RTP, RTSP, FTP, SMTP, DNS, DDNS, NTP, ICMP, IGMP, ARP, SIP
Working Temperature / Humidity -10° C - 50° C50° Cg; C50° C
Humidity: 10 - 90% Rh no condensation
Power Adapter Output: 12VDC/1.5A; Input: 100 - 240VAC, 50 - 60Hz
