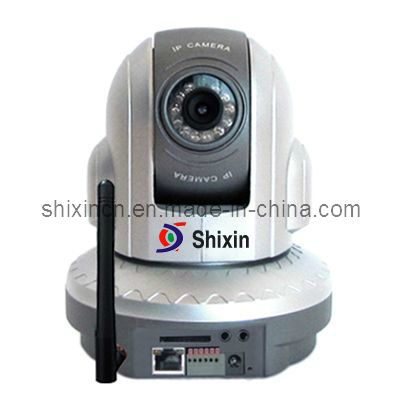

650tvl WiFi Camera Wireless Pan/Tilt Dome IP Camera for Indoor Security with IR Night Vision (IP-106HW)

73-90 USD

Model NO.	IP-106HW
Sensor	CCD
Technology	Wireless
Effective Distance	10-30m
Horizontal Resolution	420/520/650/700 Tvl
Compression	H.264
Trademark	SHIXIN
Origin	Shenzhen, China
Type	IP Camera
Speed	Low-speed Dome
Feature	Mini Size, High Definition
Focal Length	Standard Lens
Sensor Size	1/3 inch
Support	Wireless
Specification	CE, FCC, RoHS

WiFi Wireless Camera with IR LEDs, PT IP Camera
Pan/Tilt, Day/Night 12IR(15M)/6mm/board
Minimum illumination: 0.001Lux@F1.4
WiFi wireless( WEP/WPA/WPA2 encryption optional)
Standard H. 264/MJPEG video compression
G. 711 audio compression
1/3' Sony CCD SensorSensor
Support auto Day/Night IR 15 meters
Two channel audio: Built-in microphone and you can also connect to pickup
1CH alarm input, 1CH output Alarm
Pan: 0° ~355° , Tilt: 0° ~180° , Speed: 15° /s; , Speed: 15° /s; /s; , Speed: 15° /s
Support SD Card
Support motion detection, event trigger

Serial No.	Type	Specification
CCDmodule	Image sensor	1/3 SONY CCD 420TVL
	Lens	C port 6mm B/W lens
	Min. illumination	0.5LUX / F1.2
Day/night	IR LED	12pcs 5mmIR LED, Indoor IR distance is 15m
WiFi	Built-in	WEP/WPA/WPA2 encryption optional, support 802.11. b/g/n Protocol
Video	Compressed format	H. 264
	Resolution	D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144)288) QCIF(176× 144); 144)288) QCIF(176× 144)
	Max frames per second	30fps@D1(NTSC) 25fps@D1(PAL)
Audio	Audio encoding format	G. 711
Audio	Microphone	Built-in microphone, and you can also connect to pickup
Software	WEB IE Browser	IE 6.0 or higher
Software	Security	Password protection, 3 levels visitors
Hardware	CPU	32 Bit ARM9 RISC Core
	Operate System	Embedded eCos system
	DDR	256M
	Flash memory	64M
Internet	Net port	10/100M Ethernet Port (RJ45)
Internet	Net protocol	TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP
Outside port	GPIO port	1ch input alarm, 1ch output alarm
	RS-485	Yes
	Video port	1ch output video (Multiple video format NTSC/PAL)
	Audio port	1ch input audio
PTZ	Visual angle	Pan: 355° Tilt: 180° 180°deg; 180°
	Rotation speed	12° /sg; /sg; /s
	Settings	Built-in decoder board and protocol, no need to dial code again which means you can use directly
Function	OSD	Support
	DDNS	Have professional Viewipcam. net and many other international famous server for your choosing
	User management	Administrator, common user, anonymous user. (Max. viewer: 20)
	Video adjustment	brightness, contrast and saturation
	Bandwidth	By adjusting the compression, frame and resolution, it can be used to different bandwidth
	Motion detection	Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like
Specification	Power supply	Input AC 100-240 V 50/60Hz Output DC 12V/1.5A
	Work environment	Temperature: -10° C- 55° C Humidity: 0% - 80%RHG - 80%RHG - 80%RHG
	Power	7.5W
	Dimension	166mm(L) X142mm(W) X170mm(H)
	Weight	0.845Kg
