Taiwan ACECO SC-1PLUS SC-1 PLUS anti-detector frequency meter

Taiwan ACECO SC-1PLUS SC-1 PLUS anti-detector frequency meter

2980 CNY (433.9USD)

add to cart

Product parameters:

  • Customized processing: no
  • Brand: Taiwan ACECO
  • Type: Wireless detector

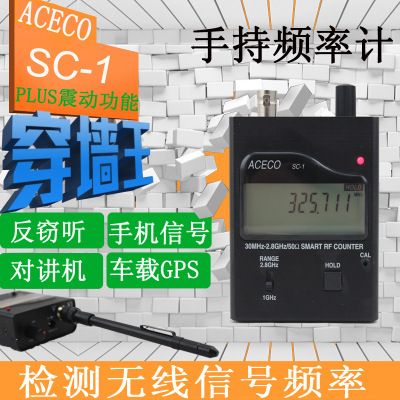

ACECO SC-1PLUS anti-detector/anti-eavesdropping detector

SC-1PLUS is the most advanced handheld digital wiretapping probe , Particularly suitable for stars, politicians and business people, Public Security Secretary authority to use instruments of secrecy. Its scalability to any number, switching and analog signal frequency; Such as mobile phones, wireless microphone, wireless, radio and so on. Itself also has features such as lightweight and easy. 【Standard: master antenna manual charger "

Brand: Taiwan June ACECO

Model: SC-1

Model: SC-1plus (Vibration Function)

Specifications
Impedance: 50 Ohms (BNC connector) frequency range: 30 MHz – 2.8 GHz sensitivity: ﹤ 2 mV maximum input: 15 dBm resolution: 10 KHz or 1 KHz of analog signals, the switching signal timing: ﹤ 1 PPM Typ. room temperature
Weight: 210 g
Size: 80 mm x 68 mm width x 31 mm long
Housing: Black Aluminum case
Power supply: 4 AA 600 mAH NiCd battery included
Charger: 9 VDC, 300 mA
Properties
7 LCD display. any measurable digital switches and analog signal frequency of pulse-widths above the 250 uS.
Paragraph 16 of extrasensory synchronous RF signal strength indicates the -35dBm to 0 dBm.
Staging press.
Low power consumption 6 hour NiCd battery.
Low voltage display.
With a telescopic antenna (144 MHz/460 MHz) and charger.
Operation
1. SQL Knob squelch knob: adjusts the receive signal strength.
2. Range switch switch Switch bandwidth: bandwidth 30 MHz to 1 GHz can be measured 0.8 GHz range; Without measurable 500 MHz wide and 2.8 GHz to 2.8 GHz.
3. Hold Button the staging keys: temporary storage and display for easy reading.
4, Calibration adjustment: SC-1 10 PPM calibration bases; Adjustments in the ' CAL ' half-fixed adjustable capacitor in terms of adjusted frequency time base. The time at the factory have gone through rigorous testing to adjust, so unless absolutely necessary, and with precisely known frequency, do not adjust
