one, product description

This product is one or four kinds of harmful gases in the air at the same time sampling instruments. For environmental monitoring, health and epidemic prevention, occupational diseases
Prevention, mining harmful gas collection, the determination of the room environment, tertiary institutions teaching, research and other units of the air of various harmful gases mining
Since the launch of the market, by the user pro-Lai.

Utility model patent (patent number: ZL 2010 2 0137402.3)

two, Features

1.The instrument is operated by four suction pumps alone.

2.Can be collected at the same time four different samples of harmful gases can also be collected from the balance of samples and four different time samples.

3.With liquid crystal display, menu operation, computer timing, small size, light weight, easy to operate, timing accurate, pumping negative pressure, the valve with needle valve mechanical adjustment, fine adjustment of the scale, good stability and so on.

three, Technical Parameters

1. Flow range: (20 ~ 500) mL / min; (0.1 ~ 1.0) L / min;

(0.1 ~ 1.5) L / min; (0.1 ~ 3.0) L / min flow can be arbitrarily selected, with

2. Operating voltage: DC7.4V (built-in 2 groups of 4.5Ah lithium-ion battery pack) AC220V ± 10V 50Hz

3. Vacuum suction:> 35000pa

4. Flowmeter Accuracy: ± 2.5FS

5. Flow stability: ≤ 5%

6. Sampling flow error: ≤ ± 5%

7. Timing range: 1min ~ 99h59min

8. Timing accuracy: ≤ ± 0.1%

9. Working noise: ≤65dB (A)

10. Ambient temperature: - 10 ℃ ~ 40 ℃

11. Relative humidity: <95%

12. Charging current: 1A (lithium battery charging current)

13. Continuous working time: ≥ 8 hours

14. Dimensions: 265mm × 135mm × 175mm

15. Instrument weight: 2.5Kg

Fourth, the working principle

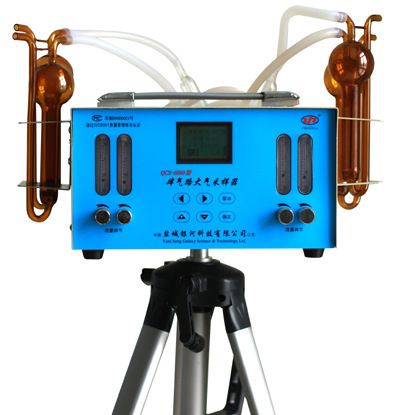

The QCS-6000 four-channel atmospheric sampler is composed of a filter, a regulating valve, a flowmeter, a suction pump, a display, an electronic control circuit and a single-chip microcomputer. The instrument is composed of four air pumps, , Can not be connected with each other, four gas can also collect a balanced sample can also be collected four different gas samples. Time from 1 minute to 99.59 hours arbitrarily set.

Fives, Random accessories

1.Host 1 set

2.Instrument box 1 only

3.Tripod 1

4.Absorb the bottle holder 4only

5.Safety bottle 4only

6.Connect the hose 4root

7.1 copy of the manual

8.1 certificate

9.Warranty card 1 copy
