Product parameters:
One, overview

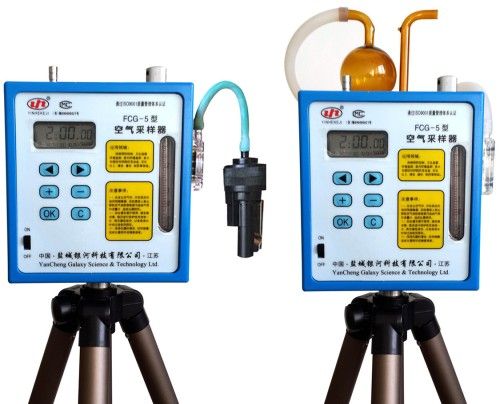

The instrument is widely used in environmental monitoring, occupational health surveillance, indoor environment, research and other toxic substances samples collected in new instruments. The instrument uses the latest micro-computer chip technology, built-in Mining lithium-ion Rechargeable battery, continuous operation time charging up 12Hours, easy operation, high timing accuracy, sturdiness and durability, AC and DC compatible, convenient when selected, the countdown 1~ 99Hour 59Range optional, shut down automatically when you turn off the power, Suitable for personal sampling and fixed sampling . Is now an ideal sampler instrument of its kind.
The instrument casing has high strength AS , ABS Colored plastics, and a moisture-proof, dust-proof, anti-static and other special treatment. Four colors Brown, grey, green, blue for purchase, will never fade.
Second, the technical parameters
Sample flow rate range (optional): 20~ 500mL/min, 0.1~ 1.0L/min, 0.1~ 1.5L/min, 0.1~ 3.0L/min,
1~ 5L/min (new standard)
Flow rate error: ≤ 5%
Timing range: 99 hours, 59 minutes and set within
Continuous work time: ﹥ 8 hour
Timing error: less than 1 ‰
Maximum negative pressure: ≥ 35000pa
Operating temperature: 0 ℃ ~ 40 ℃
Storage temperature:-40 ℃ ~ + 60 ℃
Environment at atmospheric pressure: 80KPa~110Kpa
Relative humidity: ≤ 95%
Noise: less than 60dB
Control buttons allow to rest, eat or otherwise suspend sampling
Anti-intake system: protection against liquid and particulate matter into the instrument, which can extend the life of equipment
Explosion-proof type: intrinsic safety Ex ib ⅡB T3 Gb
Power supply: Built-in lithium-ion rechargeable battery for mine 7.4V/2.3aH DC, with Lithium battery charger
Weight: about 0.5kg
Third, action
1Sampling: press the microcomputer 'Confirm /Cancel ' Key display appears '00: 00 00' , And then press 'Cent ' Select the desired time maximum time this key is 59Minutes, if 59Not enough, and then press 'Hour ' Keys, this key the maximum time for 99Hours, when time is selected, and then press 'Confirm /Cancel ' Key-that is, up-sampling. Sampling pump working computer countdown status when the computer displays '0: 00' Host when the subject is computer controlled automatic power off.
To reset or shutdown in advance, just press 'Confirm /Cancel ' Key, you enter the reset or shutdown. The display shows '0: 00' .
2Charging: plug the AC power cord insert instrument 220VAC input from the mains, the instrument is in a shutdown state, and once fully charged in about 6~ 8Hours (standard charging time). Each charge can be continuous or cumulative work 12Hours or so.
Note: placed in ventilated and dry place for a long time. If 2More than a month without recharging should be carried out to ensure high service life of the lithium-ion battery for mine.
Equipment handling, carrying process should prevent other touch microcomputer 3Keys to avoid the boot.
Instrument case, tripod, absorption bottle bracket, power charger, connect silicone tube, instructions.
