4CH Economical 720p Ahd DVR Kits Standalone Network DVR
bargain
add to cart| Model NO. | HX-AH4 |
| Video Compression | H.264 |
| Operating System | Linux |
| Interface Type | BNC/VGA/HDIM |
| Audio Input/Output | 4 Channel |
| DVR Resolution | 720p |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Type | Standalone |
| Compressed Format | H.264 |
| Application | Commercial DVR |
| Video Input/Output | 4 Channel |
| Remote Control | With Remote Control |
| Accessories | Bracket, Power Adapter, Mouse |
| Specification | CE/FCC/SGS/ROHS |
| HS Code | 8521909090 |

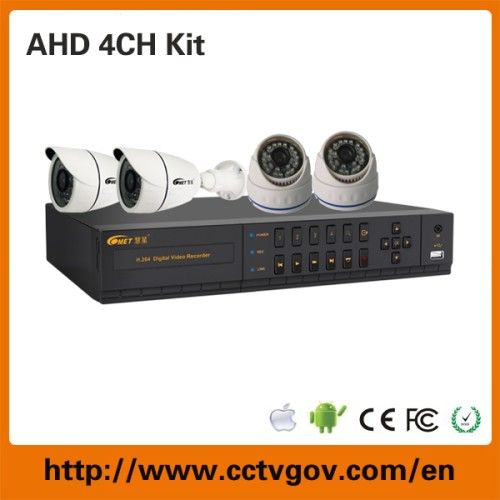

4CH Economical 720p Ahd DVR Kits standalone network DVR
Feature:
1x 4CH AHD 720P DVR
4x 1.0MP 720P dome AHD camera(2pcs metal dome camera, 2pcs IR bullet camera, 20M IR distance)
3.6mm lens
4 rolls extension cable
1x DC12V 4A power adaptor
with 1 to 5 split cable
Feature:
1x 4CH AHD 720P DVR
4x 1.0MP 720P dome AHD camera(2pcs metal dome camera, 2pcs IR bullet camera, 20M IR distance)
3.6mm lens
4 rolls extension cable
1x DC12V 4A power adaptor
with 1 to 5 split cable
| Model | HX-AH4 |
| Standalone DVR Specifications | |
| System | |
| Operating system | Embedded LINUX |
| System resources | Pentaplex function:live,recording,playback,backup & remote accessccessccess |
| Interface | |
| Operating Interface | 16-bit True Color human control system |
| Screen display | 1/4 |
| Video | |
| Video Standard | PAL(625 line,50 f/s) ; NTSC9525 line,60 f/s) |
| Monitoring quality | PAL:D1(704×576) ;NTSC:D1(704×480)04×480)s;480)04×480) |
| Playback quality | D1/HD1/CIF/QCIF |
| Total frame rate | D1:PAL 100/120fps |
| Video Input | 4ch |
| Video Output | 1BNC, 1 VGA |
| Audio | |
| Compression standard | G711A |
| Audio Input | 4ch |
| Audio Output | 1ch |
| Voice Intercom | Support |
| Video recording and playback | |
| Video mode | Manual﹥Alarm﹥Video Detection﹥ContinuousContinuous |
| Local playback | 4ch |
| Video Query | Time/Date, Alarm, Motion Detection & exact search ( accurate to second)cond)cond) |
| Storage and backup | |
| Take up hard disk space | Space Occupation,CIF:5G/day@channel,D1:20G/day@channel |
| Video Save | Hard disk,U Card,HDD,Network (To prevail in kind) |
| Backup | U Card/HDD/Network (To prevail in kind) |
| Interface | |
| Audio in | 4 in |
| Audio in | 1 out |
| Alarm Input | No |
| Alarm output | No |
| Network Interface | RJ45 10M/100M |
| PTZ Interface | NO |
| USB Interface | 1 USB port |
| HDD Interface | 1 SATA port (Maximum 2T SATA HDD) |
| Network | |
| Network Interface | RJ45 10M/100M |
| Network Protocol | Supports TCP/IP, DHCP,DDNS |
| Internet Viewing | Internet Explorer 6 or Higher |
| Mobile Phone Viewing | Symbian, Windows Mobile, iPhone, Blackberry and Android Phone |
| General | |
| Power supply | 12V/2A |
| Power | <15W (without hard disk)isk) |
| Operating Temperature | 0°C-+55°C+55°Ceg;C+55°C |
| Humidity | 10%-90% |
| Dimensions | 34*9.5*27cm |
| Weight | 2KG(without hard disk) |
| Camera Specifications | |
| Video | |
| Image Sensor | 1/3 CMOS DSP Sensor |
| pixels | PAL : 712(H)x582(V) NTSC : 712(H)x492(V) |
| TV System | NTSC / PAL |
| Minimum Illumination | 0Lux,IR ON 3Lux |
| Horizontal Resolution | 600 TV Lines |
| Electronics Shutter | PAL:1/50~1/100,000s,NTSC:1/60~1/100,000s |
| S/N Ratio | More than 48DB(AGC OFF) |
| BLC | Auto |
| Sync System | Internal Synchronization |
| Video Output | 1.0VP-P,75Ω |
| Lens | |
| Len | 3.6mm |
| View Angle | 75 degree |
| Iris Control | Auto |
| Night Vision | |
| Infrared Distance | 20M |
| Infrared LED | 24pcsφ5 LEDs LEDs LEDs |
| General | |
| Power Consumption | 90MA (IR Off) ;200MA (IR On) |
| Power Supply | DC12V |
| Operating Temperature | -10°C~ 50°C (14°F~122°F)°F~122°F)2°F)°F~122°F) |
| Storage Temperature | -20°C~ 70°C (-4°F~158°F)°F~158°F)8°F)°F~158°F) |
| Weatherproof Housing | YES |
| Bracket | YES |
